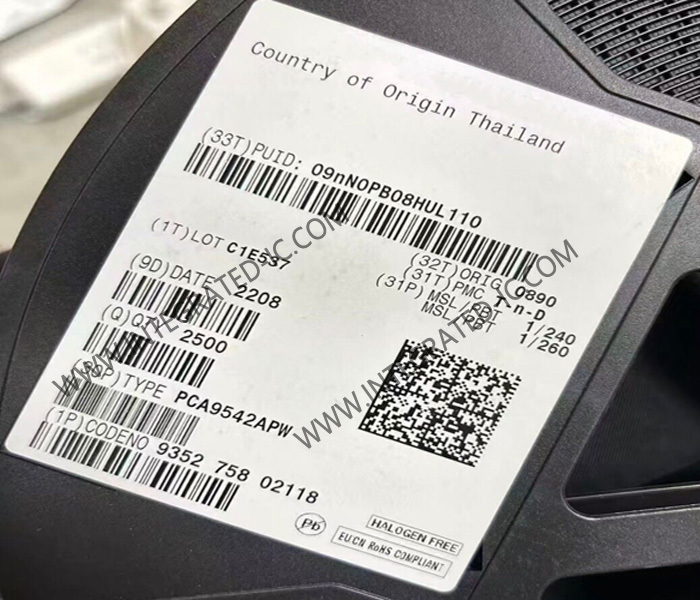

PCA9542APW Integrated Circuit Chip 2-Channel I2C-Bus Multiplexer And Interrupt Logic
PCA9542APW Integrated Circuit Chip 2-Channel I2C-Bus Multiplexer And Interrupt Logic
Description
Part Number:
PCA9542APW
Number Of Input Lines::
2 Input
Number Of Output Lines::
1 Output
Propagation Delay Time::
0.3 Ns At 2.3 V To 5.5 V
Supply Voltage - Min::
2.3 V
Supply Voltage - Max::
5.5 V
PCA9542APW Integrated Circuit Chip 2-Channel I2C-Bus Multiplexer And Interrupt Logic
Product Description Of PCA9542APW
PCA9542APW is a 1-of-2 bidirectional translating multiplexer, controlled via the I2C-bus. The SCL/SDA upstream pair fans out to two SCx/SDx downstream pairs, or channels. Only one SCx/SDx channel is selected at a time, determined by the contents of the programmable control register. Two interrupt inputs, INT0 and INT1, one for each of the SCx/SDx downstream pairs, are provided. One interrupt output, INT, which acts as an AND of the two interrupt inputs, is provided.
Specifications Of PCA9542APW
2 Input
1 Output
0.3 ns at 2.3 V to 5.5 V
2.3 V
5.5 V
- 40 C
+ 85 C
Function:
I2C Multiplexer
Height:
0.95 mm
High Level Output Current:
- 10 uA
Length:
5.1 mm
Low Level Output Current:
10 mA
Maximum Clock Frequency:
400 kHz
Operating Supply Voltage:
2.5 V, 3.3 V, 5 V
Supply Current - Max:
25 uA
Width:
4.5 mm
Unit Weight:
52.410 mg
Features Of PCA9542APW
1-of-2 bidirectional translating multiplexer
I2C-bus interface logic; compatible with SMBus
2 active LOW interrupt inputs (INT0, INT1)
Active LOW interrupt output (INT)
3 address pins allowing up to 8 devices on the I2C-bus
Channel selection via I2C-bus
Powers up with all multiplexer channels deselected
Low Ron switches
Allows voltage level translation between 1.8 V, 2.5 V, 3.3 V and 5 V buses
No glitch on power-up
Supports hot insertion
Low standby current
Operating power supply voltage range of 2.3 V to 5.5 V
5 V tolerant inputs
0 Hz to 400 kHz clock frequency
ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA
Packages offered: SO14, TSSOP14
