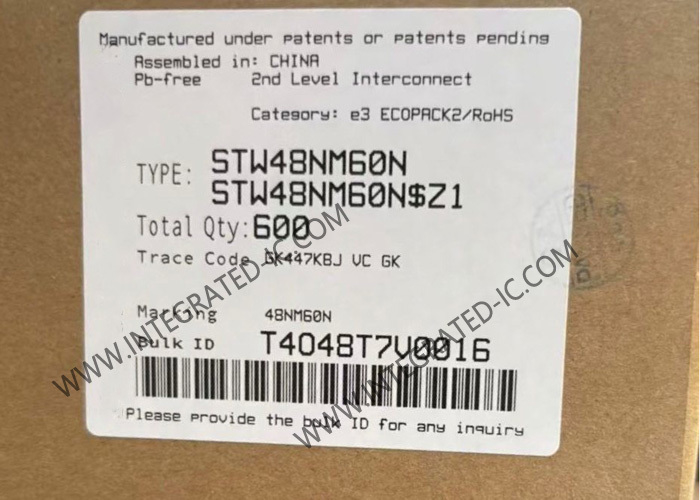

STW48NM60N Integrated Circuit Chip 600V MDmesh II N-Channel Power MOSFET Transistors

STW48NM60N Integrated Circuit Chip 600V MDmesh II N-Channel Power MOSFET Transistors
STW48NM60N Integrated Circuit Chip 600V MDmesh II N-Channel Power MOSFET Transistors

Large Image :  STW48NM60N Integrated Circuit Chip 600V MDmesh II N-Channel Power MOSFET Transistors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STW48NM60N
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

STW48NM60N Integrated Circuit Chip 600V MDmesh II N-Channel Power MOSFET Transistors

Description
Part Number: STW48NM60N Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 600 V Id - Continuous Drain Current: 39 A
Rds On - Drain-Source Resistance: 70 MOhms Pd - Power Dissipation: 255 W

STW48NM60N Integrated Circuit Chip 600V MDmesh II N-Channel Power MOSFET Transistors​



Product Description Of STW48NM60N

STW48NM60N is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.



Specification Of STW48NM60N

Series
MDmesh™ II
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
600 V
Current - Continuous Drain (Id) @ 25°C
44A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
70mOhm @ 20A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
124 nC @ 10 V
Vgs (Max)
±25V
Input Capacitance (Ciss) (Max) @ Vds
4285 pF @ 50 V
Power Dissipation (Max)
330W (Tc)
Operating Temperature
150°C (TJ)
Mounting Type
Through Hole
Supplier Device Package
TO-247-3
Package / Case
TO-247-3



Features Of STW48NM60N

100% avalanche tested
Low input capacitance and gate charge
Low gate input resistance



Applications Of STW48NM60N

Switching Applications


Other Electronic Components In Stock

Part Number Package
NL17SZ08XV5T2GH SOT-553
NC7SZU04AM5X SOT-23-5
NDSH20120CDN TO-247-3
NDSH30120C-F155 TO-247-2
NTMFS3D0N08XT1G 5-DFN
NC7SZU04AP5X SC-88A-5
PCGA3040G2F SIP-6
NCP51313ADR2G 8-SOIC
NVXR22S90M2SPM MODULE
NCP45496XMNWTWG 20-QFN
NVH820S75L4SPM MODULE
NCP45732IMN24TWG 10-DFN
NDSH30120CDN TO-247-3
NDSH40120C-F155 TO-247-2
NL17SZU04ADFT2G SC-88A
NL27WZU04ADBVT1G SC-74
NTMFS0D7N04XMT1G 5-DFN
NVBG1000N170M1 D2PAK-7
LX34311T-H/ST SSOP-14
PIC12LF1552T-E/MU UDFN-8
RN171-I/RM441 MODULE
ATMEGAS64M1-MA-HP 32-TQFP
ATSAMV71Q21B-CBVAO LQFP144
MLX90394RLD-AAA-000-SP 6-UTQFN
MLX90416KLD-AAA-004-RE TO-39
MLX90418KLD-AAA-004-RE TO-39
MLX92241LUA-BAA-119-CA TO-92-3
MLX90513GGO-CAA-100-SP TSSOP-16
MLX90830LXG-BAF-002-RE SOIC16
MLX91231KDC-BBA-000-RE 8-SOIC


FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
