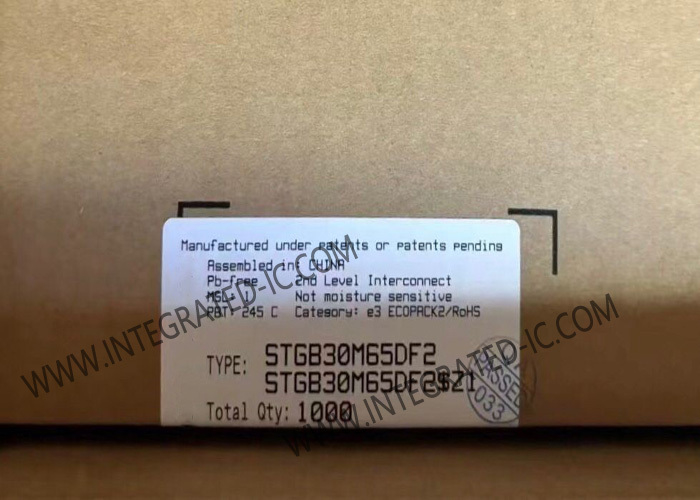

STGB30M65DF2 Integrated Circuit Chip 650V 30A Trench Gate Field Stop IGBT Transistors

STGB30M65DF2 Integrated Circuit Chip 650V 30A Trench Gate Field Stop IGBT Transistors​

Product Description Of STGB30M65DF2

STGB30M65DF2 is an IGBT developed using an advanced proprietary trench gate field‑stop structure. STGB30M65DF2 is part of the M series IGBTs, which represent an optimal balance between inverter system performance and efficiency where the low-loss and the short-circuit functionality is essential. Furthermore, the positive VCE(sat) temperature coefficient and the tight parameter distribution result in safer paralleling operation.

Specification Of STGB30M65DF2

Features Of STGB30M65DF2

Maximum junction temperature: TJ = 175 °C
6 μs of minimum short-circuit withstand time
VCE(sat) = 1.55 V (typ.) at IC = 30 A
Tight parameter distribution
Safer paralleling
Positive VCE(sat) temperature coefficient
Low thermal resistance
Soft and very fast-recovery antiparallel diode

Applications Of STGB30M65DF2

Motor control
UPS
PFC
General purpose inverter

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
