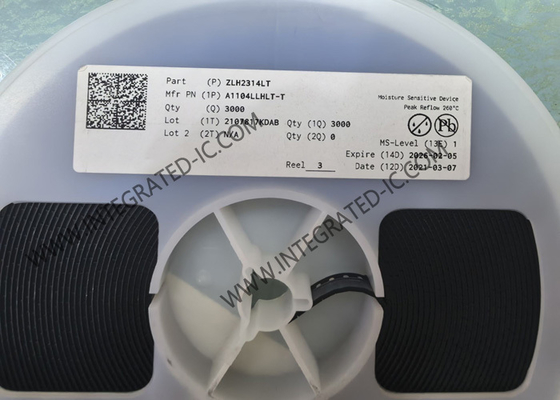

A1104LLHLT Sensor IC 3.8V To 24V Continuous-Time Hall-Effect Switches SOT-23-3

A1104LLHLT Sensor IC 3.8V To 24V Continuous-Time Hall-Effect Switches SOT-23-3
A1104LLHLT Sensor IC 3.8V To 24V Continuous-Time Hall-Effect Switches SOT-23-3

Large Image :  A1104LLHLT Sensor IC 3.8V To 24V Continuous-Time Hall-Effect Switches SOT-23-3

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: A1104LLHLT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOT-23-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

A1104LLHLT Sensor IC 3.8V To 24V Continuous-Time Hall-Effect Switches SOT-23-3

Description
Part Number: A1104LLHLT Operating Supply Current:: 4.1 MA
Maximum Output Current:: 25 MA Operating Point Min/Max:: 70 G To 350 G
Release Point Min/Max (Brp):: 50 G To 330 G Operating Supply Voltage:: 3.8 V To 24 V
Highlight:

Hall-Effect sensor IC SOT-23-3

,

Continuous-Time Hall-Effect Switches 3.8V-24V

,

A1104LLHLT sensor IC with warranty

A1104LLHLT Sensor IC 3.8V To 24V Continuous-Time Hall-Effect Switches SOT-23-3
Product Attributes
Part Number A1104LLHLT
Operating Supply Current 4.1 mA
Maximum Output Current 25 mA
Operating Point Min/Max 70 G to 350 G
Release Point Min/Max (Brp) 50 G to 330 G
Operating Supply Voltage 3.8 V to 24 V
Product Description

A1104LLHLT provides fast power-on time and low-noise operation for a variety of applications. These continuous-time unipolar switches offer robust performance, a wide operating voltage range, and integrated protection features. Factory programming ensures accurate switchpoint thresholds.

Specifications
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 45mT Trip, 2.5mT Release
Test Condition -40°C ~ 150°C
Voltage - Supply 3.8V ~ 24V
Current - Supply (Max) 7.5mA
Current - Output (Max) 25mA
Output Type Open Drain
Operating Temperature -40°C ~ 150°C (TA)
Features
  • AEC-Q100 automotive qualified
  • Continuous-time operation
  • Fast power-on time
  • Low noise
  • Stable operation over full operating temperature range
  • Reverse-battery protection
  • Solid-state reliability
  • Factory-programmed at end-of-line for optimum performance
  • Robust EMC performance
  • High ESD rating
  • Regulator stability without a bypass capacitor
