QPF4656TR13 WIFI 6 Chip Wi-Fi 6E Front End Module 5945MHz To 7125MHz RF Front End

QPF4656TR13 WIFI 6 Chip Wi-Fi 6E Front End Module 5945MHz To 7125MHz RF Front End
QPF4656TR13 WIFI 6 Chip Wi-Fi 6E Front End Module 5945MHz To 7125MHz RF Front End

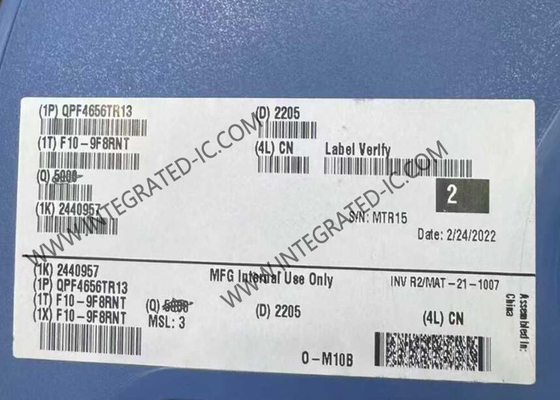

Large Image :  QPF4656TR13 WIFI 6 Chip Wi-Fi 6E Front End Module 5945MHz To 7125MHz RF Front End

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: QPF4656TR13
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-16
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

QPF4656TR13 WIFI 6 Chip Wi-Fi 6E Front End Module 5945MHz To 7125MHz RF Front End

Description
Part Number: QPF4656TR13 Operating Frequency: 5.945 GHz To 7.125 GHz
NF - Noise Figure: 2 DB Operating Supply Voltage: 5 V
Gain: 32 DB Type: Wi-Fi 6E Front End Module
Highlight:

WiFi 6E front end module

,

RF front end module 5945MHz-7125MHz

,

WIFI 6 chip with RF module

QPF4656TR13 WIFI 6 Chip Wi-Fi 6E Front End Module 5945MHz To 7125MHz RF Front End
Product Attributes
Attribute Value
Part Number QPF4656TR13
Operating Frequency 5.945 GHz to 7.125 GHz
NF - Noise Figure 2 dB
Operating Supply Voltage 5 V
Gain 32 dB
Type Wi-Fi 6E Front End Module
Product Description

QPF4656TR13 is an integrated front end module (FEM) designed for Wi-Fi 6 & 6E (802.11ax) systems. The small form factor and integrated matching minimizes layout area in the application.

QPF4656TR13 integrates a 5.9-7.1 GHz power amplifier (PA), single pole two throw switch (SP2T) and bypassable low noise amplifier (LNA) into a single device.

Specifications
RF Type 802.11ax, Wi-Fi
Frequency 5.945GHz ~ 7.125GHz
Features SP2T
NF - Noise Figure 2 dB
Gain 32 dB
Package / Case 16-SMD Module
Features
  • 5945MHz - 7125 MHz
  • POUT = +18 dBm MCS11 HE160 -43dB Dynamic EVM
  • POUT = +20 dBm MCS11 HE80 -43dB Dynamic EVM
  • POUT = +27 dBm MCS0 HE20 Spectral Mask Compliance
  • Optimized for +5 V Operation
  • 32 dB Tx Gain
  • 2 dB Noise Figure
  • 14.5 dB Rx Gain & 8 dB Bypass Loss
  • 25 dB 2.4 GHz Rejection on Rx Path
  • Integrated DC Logarithmic Power Detector
Applications
  • Access Points
  • Wireless Routers
  • Residential Gateways
  • Customer Premise Equipment
  • Internet of Things
