ISO6520FREUR Integrated Circuit Chip General Purpose Dual-Channel Functional Isolators

ISO6520FREUR Integrated Circuit Chip General Purpose Dual-Channel Functional Isolators
ISO6520FREUR Integrated Circuit Chip General Purpose Dual-Channel Functional Isolators

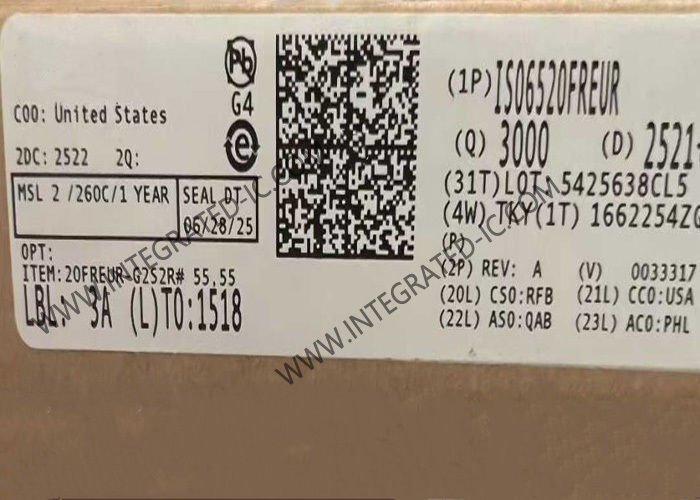

Large Image :  ISO6520FREUR Integrated Circuit Chip General Purpose Dual-Channel Functional Isolators

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ISO6520FREUR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VSON-8
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

ISO6520FREUR Integrated Circuit Chip General Purpose Dual-Channel Functional Isolators

Description
Part Number: ISO6520FREUR Number Of Channels:: 2 Channel
Polarity:: Unidirectional Data Rate:: 50 Mb/s
Supply Voltage - Max:: 5.5 V Supply Voltage - Min:: 1.71 V
Highlight:

ISO6520FREUR dual-channel isolator IC

,

general purpose integrated circuit chip

,

functional isolators with dual-channel design

ISO6520FREUR Integrated Circuit Chip General Purpose Dual-Channel Functional Isolators
Product Attributes
Attribute Value
Part Number ISO6520FREUR
Number of Channels 2 Channel
Polarity Unidirectional
Data Rate 50 Mb/s
Supply Voltage - Max 5.5 V
Supply Voltage - Min 1.71 V
Product Description

ISO6520FREUR is high-performance, dual-channel functional isolators designed for cost sensitive, space constrained applications that require isolation for non-safety applications. The isolation barrier supports a working voltage of 450VRMS / 637VDC and transient over voltages of 2000VRMS / 2828VDC.

Specifications
Type RS232, RS485, SPI
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Channel Type Unidirectional
Voltage - Isolation 570Vrms
Common Mode Transient Immunity (Min) 100kV/µs
Data Rate 50Mbps
Propagation Delay tpLH / tpHL (Max) 18ns, 18ns
Pulse Width Distortion (Max) 7ns
Rise / Fall Time (Typ) 2.6ns, 2.6ns
Voltage - Supply 1.71V ~ 1.89V, 2.25V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Features
  • Dual channel, CMOS output functional isolators
  • 50Mbps data rate
  • Robust SiO2 isolation barrier with ±150kV/µs typical CMTI
  • Functional Isolation (8-REU): 450VRMS, 637VDC working voltage; 2000VRMS, 2828VDC transient voltage (60s)
  • Functional Isolation (8-D): 450VRMS, 637VDC working voltage; 2000VRMS, 2828VDC transient voltage (60s)
  • Available in a compact 8-REU package with >2.2mm creepage
  • Wide supply range: 1.71V to 1.89V and 2.25V to 5.5V
  • 1.71V to 5.5V level translation
  • Default output High (ISO652x) and Low (ISO652xF) Options
  • Wide temperature range: -40°C to 125°C
  • 1.8mA per channel typical at 1Mbps at 3.3V
  • Low propagation delay: 11ns typical at 3.3V
  • Robust electromagnetic compatibility (EMC)
  • System-Level ESD, EFT, and surge immunity
  • Ultra-low emissions
Applications
  • Power supplies
  • Grid, Electricity meter
  • Motor drives
  • Factory automation
  • Building automation
  • Lighting
  • Appliances
