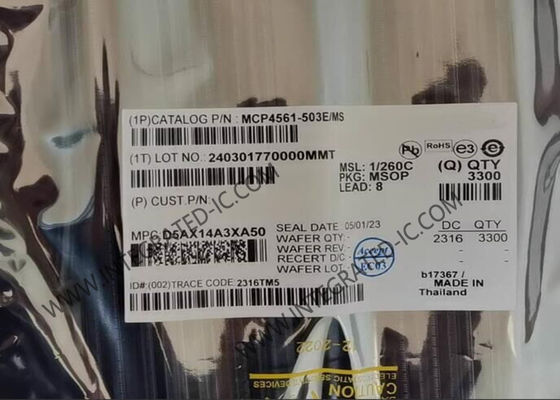

MCP4561-503E/MS Integrated Circuit Chip Digital Potentiometers 8-Bit Single Digital POT

MCP4561-503E/MS Integrated Circuit Chip Digital Potentiometers 8-Bit Single Digital POT
MCP4561-503E/MS Integrated Circuit Chip Digital Potentiometers 8-Bit Single Digital POT

Large Image :  MCP4561-503E/MS Integrated Circuit Chip Digital Potentiometers 8-Bit Single Digital POT

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MCP4561-503E/MS
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MSOP-8
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

MCP4561-503E/MS Integrated Circuit Chip Digital Potentiometers 8-Bit Single Digital POT

Description
Part Number: MCP4561-503E/MS Resistance: 50 KOhms
Tolerance: 20 % Taps Per POT: 256 Tap
Temperature Coefficient: 150 PPM/℃ Digital Interface: Serial (2-Wire, I2C)
Highlight:

8-bit digital potentiometer IC

,

single digital POT chip

,

MCP4561-503E/MS integrated circuit

MCP4561-503E/MS Integrated Circuit Chip Digital Potentiometers 8-Bit Single Digital POT
Product Attributes
Attribute Value
Part Number MCP4561-503E/MS
Resistance 50 kOhms
Tolerance 20 %
Taps per POT 256 Tap
Temperature Coefficient 150 PPM/℃
Digital Interface Serial (2-Wire, I2C)
Product Description

MCP4561-503E/MS is single channel, non-volatile, 8-bit (257 wiper steps) digital potentiometers with EEPROM and an I2C compatible interface. MCP4561-503E/MS is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ.

Specifications
Taper Linear
Configuration Potentiometer
Number of Circuits 1
Number of Taps 257
Resistance (Ohms) 50k
Interface I2C
Memory Type Non-Volatile
Voltage - Supply 1.8V ~ 5.5V
Features Mute, Selectable Address
Tolerance ±20%
Temperature Coefficient (Typ) 150ppm/°C
Mounting Type Surface Mount
Supplier Device Package 8-MSOP
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Operating Temperature -40°C ~ 125°C
Resistance - Wiper (Ohms) (Typ) 75
Features
  • Single Resistor Network
  • Potentiometer or Rheostat configuration options
  • 8-bit: 256 Resistors (257 Steps)
  • RAB Resistances Options of: 5kΩ, 10kΩ, 50kΩ, 100kΩ
  • Zero-Scale to Full-Scale Wiper operation
  • Low Wiper Resistance: 75Ω (typ.)
  • Absolute (Rheostat): 50 ppm typical(0°C to 70°C)
  • Ratiometric (Potentiometer): 15 ppm typical
  • I2C Serial Interface
    • 100 kHz, 400 kHz and 3.4 MHz Support
  • Brown-out reset protection (1.5V typical)
  • Serial Interface Inactive current (2.5 uA typ.)
  • High-Voltage Tolerant Digital Inputs: Up to 12.5V
  • Wide Operating Voltage:
    • 2.7V to 5.5V - Device Characteristics Specified
    • 1.8V to 5.5V - Device Operation
  • Wide Bandwidth (-3dB) Operation:
    • 2 MHz (typ.) for 5.0 kΩ Device
  • Extended temperature range (-40°C to +125°C)
