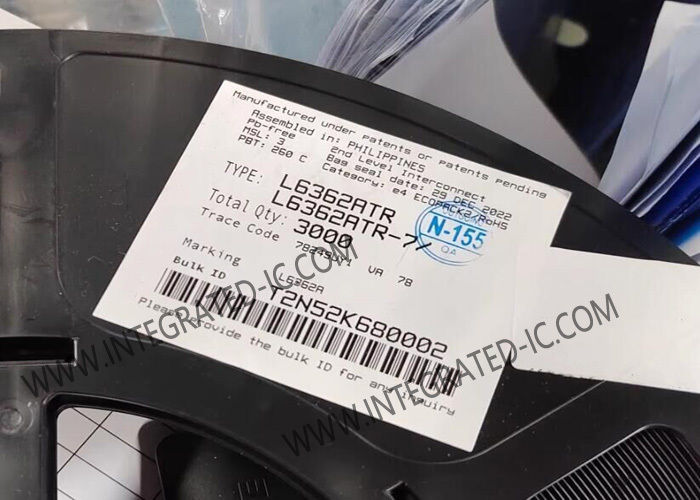

L6362ATR Integrated Circuit Chip IO-Link Communication Transceiver Device IC VFDFPN12

L6362ATR is an IO-Link and SIO mode transceiver device compliant to PHY2 (3-wire connection) supporting COM1 (4.8 kbaud), COM2 (38.4 kbaud) and COM3 (230.4 kbaud) modes. The output stage can be configured as high-side, low-side or push-pull and it can drive resistive, capacitive and inductive loads.

L6362ATR can be connected to a sensor chip with the industrial 24 V environment. The industrial environment could be a PLC, an IO-Link master, a relay or a valve. The L6362ATR is protected against reverse polarity, among VCC, GND, OUTH, OUTL and I/Q pins. Furthermore, the IC is protected against output short-circuit, overvoltage and impulse voltage withstand (±1 kV pulse amplitude, 1.2/50 μs pulse duration, 500 Ω source impedance).

• Supply voltage from 7 V to 36 V
• 5 V and 3.3 V compatible I/Os
• 5 V or 3.3 V, 10 mA selectable linear regulator
• 0.3 A output current intervention threshold
• Fully protected:
  • Reverse polarity
  • Overload with cut-off function
  • Overtemperature
  • Undervoltage and overvoltage
  • GND and VCC open wire
• -40 to +125 °C operating ambient temperature
• Selectable output stages: high-side, low-side, push-pull
• Suitable to drive L, C and R loads
• 30 μF output load drive capability
• Switching capability of inductors up to 500 mJ
• Wake-up detection supported
• Fast demagnetization of inductive loads
• COM1, COM2 and COM3 mode supported
• Miniaturized VFDFPN 12L (3x3x0.90 mm) package

• Industrial sensors
• Factory automation
• Process control
