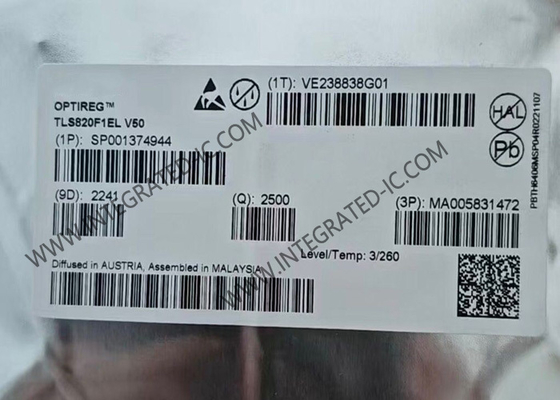

TLS820F1ELV50 Integrated Circuit Chip High Performance Low Dropout Linear Voltage Regulator
Product Attributes
| Attribute |
Value |
| Part Number |
TLS820F1ELV50 |
| Number of Regulators |
1 |
| Voltage - Input (Max) |
40V |
| Voltage - Output (Min/Fixed) |
5V |
| Voltage Dropout (Max) |
0.34V @ 200mA |
| Current - Output |
200mA |
Product Description
TLS820F1ELV50 is a high performance very low dropout linear voltage regulator for 5 V supply in a small and thermally enhanced PG-SSOP-14 package.
TLS820F1ELV50 regulators are ideal for automotive or battery-connected supply systems, with a 3V to 40V input range and a low 40μA quiescent current. They offer high output voltage accuracy, 200mA max current, fast regulation, and stability. Additionally, they integrate a Watchdog circuit and include internal protection features for added reliability.
Specifications
| Specification |
Value |
| Output Configuration |
Positive |
| Output Type |
Fixed |
| Number of Regulators |
1 |
| Voltage - Input (Max) |
40V |
| Voltage - Output (Min/Fixed) |
5V |
| Voltage Dropout (Max) |
0.34V @ 200mA |
| Current - Output |
200mA |
| Current - Quiescent (Iq) |
5 µA |
| Current - Supply (Max) |
80 µA |
| PSRR |
59dB (100Hz) |
| Control Features |
Delay, Enable, Reset, Watchdog |
| Protection Features |
Over Current, Over Temperature, Short Circuit |
| Operating Temperature |
-40°C ~ 150°C (TJ) |
| Grade |
Automotive |
Features
- Wide Input Voltage Range from 3.0 V to 40 V
- Fixed Output Voltage 5 V
- Output Voltage Precision = ± 2 %
- Output Current Capability up to 200 mA
- Ultra Low Current Consumption typ. 40 µA
- Very Low Dropout Voltage typ. 70 mV@100 mA
- Stable with Ceramic Output Capacitor of 1 µF
- Adjustable Reset Threshold down to 2.50 V
- Flexible Watchdog and Reset timing with selectable window
- Enable, Undervoltage Reset, Overtemperature Shutdown
- Output Current Limitation
- Wide Temperature Range up-to 150°C
- Green Product (RoHS compliant)
- AEC Qualified
Benefits
- Very wide input voltage range
- Fast voltage regulation loop
- Supports voltage cranking application
- Very low dropout
Applications
- Automotive body control module (BCM)
- Seat control module
- Automotive LED lighting systems
- Automotive battery management system (BMS) - 48 V
- Automotive electric pumps & fans 12 V
