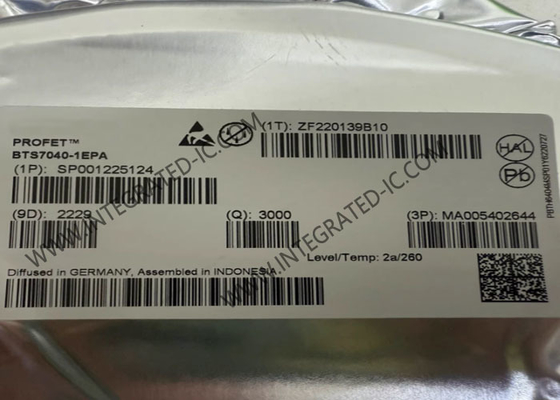

BTS7040-1EPA Integrated Circuit Chip PROFET Smart High-Side Power Switch PG-TSDSO-14

BTS7040-1EPA Integrated Circuit Chip PROFET Smart High-Side Power Switch PG-TSDSO-14
BTS7040-1EPA Integrated Circuit Chip PROFET Smart High-Side Power Switch PG-TSDSO-14

Large Image :  BTS7040-1EPA Integrated Circuit Chip PROFET Smart High-Side Power Switch PG-TSDSO-14

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BTS7040-1EPA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-TSDSO-14
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

BTS7040-1EPA Integrated Circuit Chip PROFET Smart High-Side Power Switch PG-TSDSO-14

Description
Part Number: BTS7040-1EPA Current Limit: 34 A To 45 A
IL (Short Circuit Current): 46 A RDS (on) (@ Tj = 25°C): 19 MΩ
Recommended Operating Voltage: 3.1 V To 28 V Operating Temperature: -40 °C To 150 °C
Highlight:

BTS7040-1EPA PROFET power switch

,

high-side power switch IC

,

PG-TSDSO-14 integrated circuit chip

BTS7040-1EPA Integrated Circuit Chip PROFET Smart High-Side Power Switch PG-TSDSO-14
Product Attributes
Attribute Value
Part Number BTS7040-1EPA
Current Limit 34 A to 45 A
IL (Short Circuit Current) 46 A
RDS (on) (@ Tj = 25°C) 19 mΩ
Recommended Operating Voltage 3.1 V to 28 V
Operating Temperature -40 °C to 150 °C
Product Description

BTS7040-1EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis. High-side switch with diagnosis and protection for automotive applications. 1-channel, 4.5 A nominal current, ISO 26262-ready, and AEC Q100 grade 1 qualified. Features overcurrent, undervoltage, and overvoltage protection, as well as load current sense and diagnostic capabilities.

Specification
Series PROFET®
Switch Type General Purpose
Number of Outputs 1
Ratio - Input:Output 1:1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 6V ~ 18V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 4.5A
Rds On (Typ) 19mOhm
Input Type Non-Inverting
Fault Protection Over Current, Over Voltage, Short Circuit, UVLO
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TSDSO-14-22
Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Features
  • High-Side Switch with Diagnosis&Embedded
  • Part of PROFET™+2 12V Family
  • Reverse ON for low power dissipation
  • Switch ON capability (Inverse ON)
  • Qualified in accordance AEC Q100 grade 1
  • Protection FeaturesAbsolute
  • Intelligent Overcurrent Trip and Restart
  • Undervoltage shutdown
  • External Component Overvoltage Protect
  • Proportional Load Current Sense
  • Open Load in ON and OFF state
Applications
  • Domain controller for ADAS & autonomous driving
  • Automotive body electronics & power distribution
  • Automotive primary power distribution unit
  • Automotive body control module (BCM)
