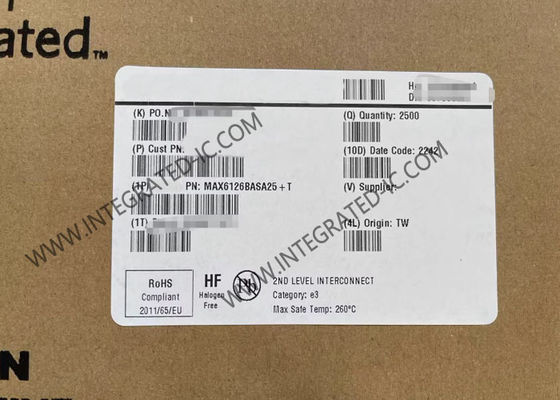

MAX6126BASA25 Integrated Circuit Chip Low-Dropout Series Voltage Reference IC SOIC8

MAX6126BASA25 is an ultra-low-noise, high-precision, low-dropout voltage reference. This family of voltage references feature curvature-correction circuitry and high-stability, laser-trimmed, thin-film resistors that result in 3ppm/°C (max) temperature coefficients and an excellent ±0.02% (max) initial accuracy.

MAX6126BASA25 mode reference operates from a wide 2.7V to 12.6V supply voltage range and load-regulation specifications are guaranteed to be less than 0.025Ω for sink and source currents up to 10mA. The MAX6126BASA25 is available over the automotive temperature range of -40°C to +125°C.

• Ultra-Low 1.3µVP-P Noise (0.1Hz to 10Hz, 2.048V Output)
• Ultra-Low 3ppm/°C (max) Temperature Coefficient
• ±0.02% (max) Initial Accuracy
• Wide (VOUT + 200mV) to 12.6V Supply Voltage Range
• Low 200mV (max) Dropout Voltage
• 380µA Quiescent Supply Current
• 10mA Sink/Source-Current Capability
• Stable with CLOAD = 0.1µF to 10µF
• Low 20ppm/1000hr Long-Term Stability
• 0.025Ω (max) Load Regulation
• 20µV/V (max) Line Regulation
• Force and Sense Outputs for Remote Sensing

• Automated Test Equipment (ATE)
• Digital Voltmeters
• High-Accuracy Industrial and Process Control
• High-Accuracy Reference Standard
• High-Resolution A/D and D/A Converters
• Precision Current Sources
