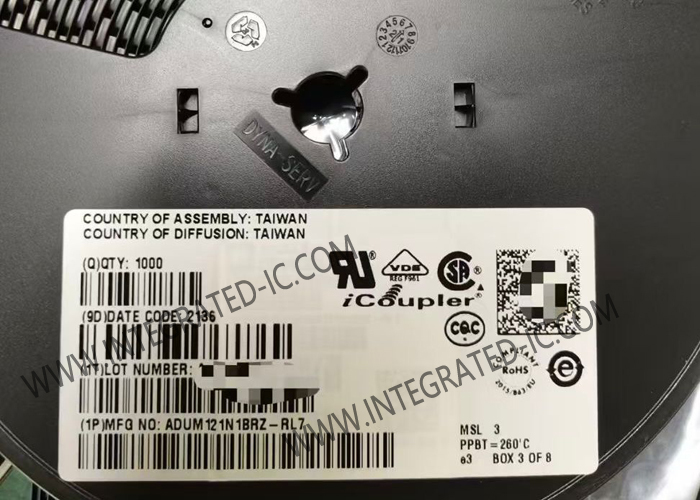

ADUM121N1BRZ Integrated Circuit Chip 3.0 kVrms Dual-Channel Digital Isolators

ADUM121N1BRZ is dual-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. Combining high speed, complementary metal-oxide semiconductor (CMOS) and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices and other integrated couplers. The maximum propagation delay is 13 ns with a pulse width distortion of less than 3 ns at 5 V operation. Channel matching is tight at 3.0 ns maximum.

• High common-mode transient immunity: 100 kV/µs typical
• High robustness to radiated and conducted noise
• Low propagation delay
• 13 ns maximum for 5 V operation
• 15 ns maximum for 1.8 V operation
• 150 Mbps minimum data rate
• Safety and regulatory approvals
• UL recognition: 3000 V rms for 1 minute per UL 1577
• CSA Component Acceptance Notice 5A
• VDE certificate of conformity
• DIN VDE V 0884-11:2017-01
• VIORM = 565 V peak
• CQC certification per GB4943.1-2011
• Backward compatibility
• ADuM120N0 pin-compatible with ADuM1285
• ADuM120N1 pin-compatible with ADuM1280 and ADuM1200
• ADuM121N0 pin-compatible with ADuM1286
• ADuM121N1 pin-compatible with ADuM1281 and ADuM1201
• Low dynamic power consumption
• 1.8 V to 5 V level translation
• High temperature operation: 125°C
• Failsafe high or low options
• 8-lead, RoHS-compliant, SOIC package
• Qualified for automotive applications

• General-purpose multichannel isolation
• Industrial field bus isolation
