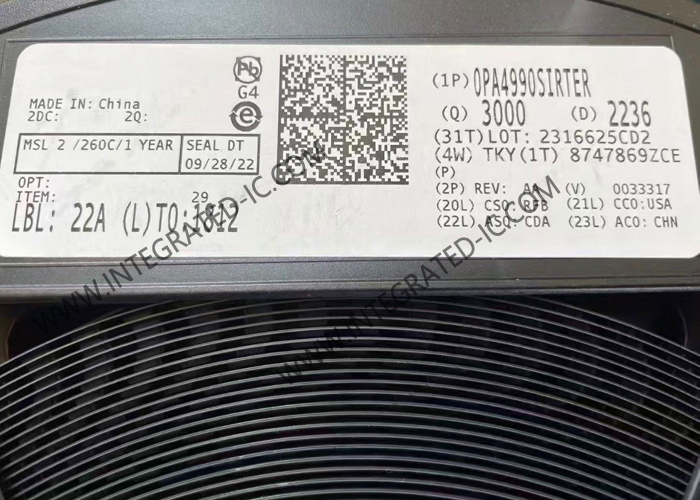

OPA4990SIRTER Integrated Circuit Chip 40V Operational Amplifier WQFN16 Low Power Op Amp IC

OPA4990SIRTER Integrated Circuit Chip 40V Operational Amplifier WQFN16 Low Power Op Amp IC
OPA4990SIRTER Integrated Circuit Chip 40V Operational Amplifier WQFN16 Low Power Op Amp IC

Large Image :  OPA4990SIRTER Integrated Circuit Chip 40V Operational Amplifier WQFN16 Low Power Op Amp IC

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: OPA4990SIRTER
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WQFN-16
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

OPA4990SIRTER Integrated Circuit Chip 40V Operational Amplifier WQFN16 Low Power Op Amp IC

Description
Part Number: OPA4990SIRTER Number Of Channels: 4 Channel
GBP - Gain Bandwidth Product: 1.1 MHz SR - Slew Rate: 4.5 V/us
Vos - Input Offset Voltage: 300 UV Ib - Input Bias Current: 10 PA
Highlight:

40V operational amplifier IC

,

low power op amp chip

,

WQFN16 integrated circuit

OPA4990SIRTER Integrated Circuit Chip 40V Operational Amplifier WQFN16 Low Power Op Amp IC
Product Attributes
Attribute Value
Part Number OPA4990SIRTER
Number of Channels 4 Channel
GBP - Gain Bandwidth Product 1.1 MHz
SR - Slew Rate 4.5 V/us
Vos - Input Offset Voltage 300 uV
Ib - Input Bias Current 10 pA
Product Description

OPA4990SIRTER is high voltage (40 V) general purpose operational amplifiers. The device offer excellent DC precision and AC performance, including rail-to-rail input/output, low offset (±300 µV, typ), and low offset drift (±0.6 µV/°C, typ).

Specification
Amplifier Type Standard (General Purpose)
Number of Circuits 4
Output Type Rail-to-Rail
Slew Rate 4.5V/µs
Gain Bandwidth Product 1.1 MHz
Current - Input Bias 10 pA
Voltage - Input Offset 300 µV
Current - Supply 120µA (x2 Channels)
Current - Output / Channel 80 mA
Voltage - Supply Span (Min) 2.7 V
Voltage - Supply Span (Max) 40 V
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 16-WFQFN Exposed Pad
Supplier Device Package 16-WQFN (3x3)
Features
  • Low offset voltage: ±300 µV
  • Low offset voltage drift: ±0.6 µV/°C
  • Low noise: 30 nV/√Hz at 1 kHz
  • High common-mode rejection: 115 dB
  • Low bias current: ±10 pA
  • Rail-to-rail input and output
  • MUX-friendly/comparator inputs
  • Amplifier operates with differential inputs up to supply rail
  • Amplifier can be used in open-loop or as comparator
  • Wide bandwidth: 1.1-MHz GBW
  • High slew rate: 4.5 V/µs
  • Low quiescent current: 120 µA per amplifier
  • Wide supply: ±1.35 V to ±20 V, 2.7 V to 40 V
  • Robust EMIRR performance: 78 dB at 1.8 GHz
  • Differential and common-mode input voltage range to supply rail
Applications
  • Multiplexed data-acquisition systems
  • Test and measurement equipment
  • Motor drive: power stage and control modules
  • Power delivery: UPS, server, and merchant network power
  • ADC driver and reference buffer amplifier
  • Programmable logic controllers
  • Analog input and output modules
  • High-side and low-side current sensing
  • High precision comparator
