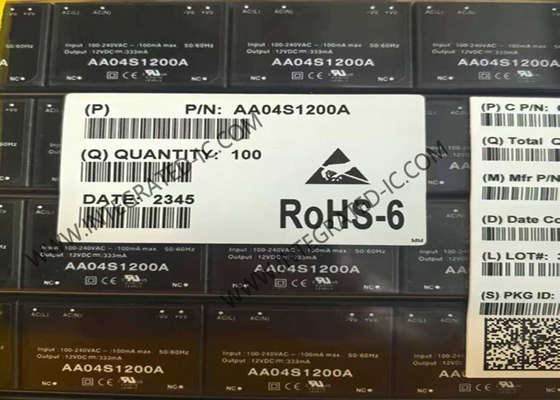

AA04S1200A Integrated Circuit Chip 4W Single Output AC/DC Power Module
Product Description
AA04S1200A isolated fully encapsulated 4W AC/DC power module with 3kVAC isolation. With Universal input voltage 85-264VAC and International safety approvals, these power modules are ideal for applications in commercial and industrial electronic equipment. These isolated AC/DC converters are the latest offering from a world leader in power systems technology and manufacturing ― Delta Electronics, Inc. With creative design technology and optimization of component placement, these converters possess outstanding electrical and thermal performance, as well as extremely high reliability under highly stressful operating conditions.
Specifications
|
Number of Outputs
|
|
|
Voltage - Input
|
85 ~ 264 VAC, 120 ~ 370 VDC
|
|
Voltage - Output 1
|
|
|
Current - Output (Max)
|
|
|
Power (Watts)
|
|
|
Applications
|
|
|
Features
|
|
|
Operating Temperature
|
-25°C ~ 60°C (With Derating)
|
|
Efficiency
|
|
|
Size / Dimension
|
1.44" L x 1.06" W x 0.67" H (36.5mm x 27.0mm x 17.1mm)
|
|
Standard Number
|
|
|
Line Regulation
|
|
|
Load Regulation
|
|
|
Weight
|
|
Features
PCB Mounting
Package dimension: 27.0x36.5x17.1mm
Universal Input range 85-264 VAC, 47-440 Hz
Over Load and Over Voltage Protection
EMI meets EN55032 Class B and EMS compliance to EN61000-4
UL/IEC/EN 60950-1 Certified , CE Marked
3kVAC Isolatoin , Protection Class ll level
Lead free, RoHs Compliant
