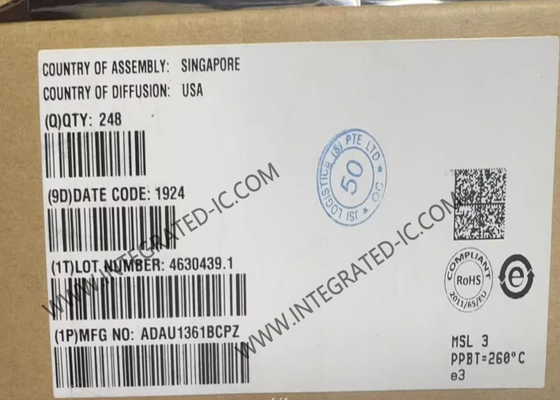

ADAU1361BCPZ Integrated Circuit Chip Stereo Low Power 96 kHz 24-Bit Audio Codec With Integrated PLL
Product Description
ADAU1361BCPZ is a low power, stereo audio codec that supports stereo 48 kHz record and playback at 14 mW from a 1.8 V analog supply. The stereo audio ADCs and DACs support sample rates from 8 kHz to 96 kHz as well as a digital volume control. The ADAU1361BCPZ is ideal for battery-powered audio and telephony applications.
Specifications
|
Type
|
|
|
Data Interface
|
|
|
Resolution (Bits)
|
|
|
Number of ADCs / DACs
|
|
|
Sigma Delta
|
|
|
Voltage - Supply, Analog
|
|
|
Voltage - Supply, Digital
|
|
|
Operating Temperature
|
|
Features
24-bit stereo audio ADC and DAC: >98 dB SNR
Sampling rates from 8 kHz to 96 kHz
Low power: 7 mW record, 7 mW playback, 48 kHz at 1.8 V
6 analog input pins, configurable for single-ended or differential inputs
Flexible analog input/output mixers
Stereo digital microphone input
Analog outputs: 2 differential stereo, 2 single-ended stereo, 1 mono headphone output driver
PLL supporting input clocks from 8 MHz to 27 MHz
Analog automatic level control (ALC)
Microphone bias reference voltage
Analog and digital I/O: 1.8 V to 3.65 V
I2C and SPI control interfaces
Digital audio serial data I/O: stereo and time-division multiplexing (TDM) modes
Software-controllable clickless mute
Software power-down
32-lead, 5 mm × 5 mm LFCSP
−40°C to +85°C operating temperature range
Applications
Smartphones/multimedia phones
Digital still cameras/digital video cameras
Portable media players/portable audio players
Phone accessories products
