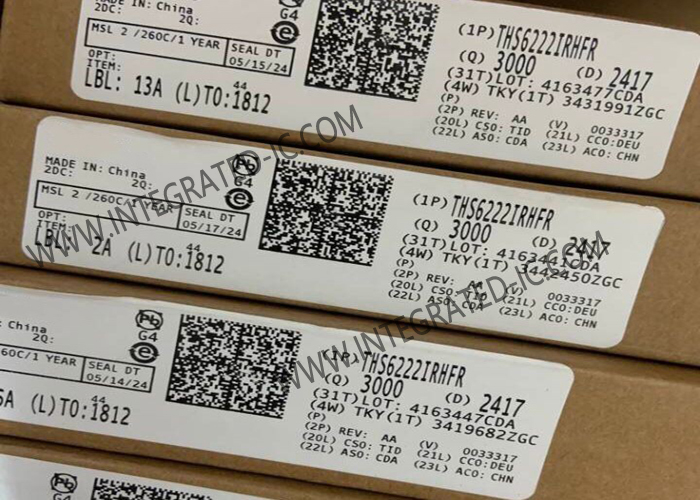

THS6222IRHFR Integrated Circuit Chip Differential Line-Driver Amplifier VQFN24

THS6222IRHFR Integrated Circuit Chip Differential Line-Driver Amplifier VQFN24

Product Description

THS6222IRHFR is a differential line-driver amplifier with a current-feedback architecture manufactured using high-speed, silicon-germanium (SiGe) process. THS6222IRHFR is targeted for use in broadband, high-speed, power line communications (HPLC, IEEE 1901.1) line driver applications that require high linearity when driving heavy line loads. THS6222IRHFR supports PLC standards including G3, PRIME, ISO 15118 (HPGP), G.hn and PRIME BPL. Common modulation schema: OOK, FSK, OFDM.

Specification

Features

Supply range (VS): 8V to 32V
Integrated midsupply common-mode buffer
Large-signal bandwidth: 195MHz (VO = 16VPP)
Slew rate (16V step): 5500V/µs
Low distortion (VS = 12V, 50Ω load):
– HD2: –80dBc (1MHz)
– HD3: –90dBc (1MHz)
Output current: 338mA (VS = 12V, 25Ω load)
Wide output swing (VS = 12V):
– 19.4VPP (100Ω load)
– 18.6VPP (50Ω load)
Adjustable power modes:
– Full-bias mode: 19.5mA
– Mid-bias mode: 15mA
– Low-bias mode: 10.4mA
– Low-power shutdown mode
– IADJ pin for variable bias
Integrated overtemperature protection

Applications

SGCC HPLC line drivers, IEEE 1901.1
PLC Standards: G.hn, PRIME BPL, G3, PRIME
HomePlug GreenPHY (HPGP), ISO 15118
Smart meters
Data concentrators
Power line communications gateways
Home networking PLC
Differential DSL line drivers
