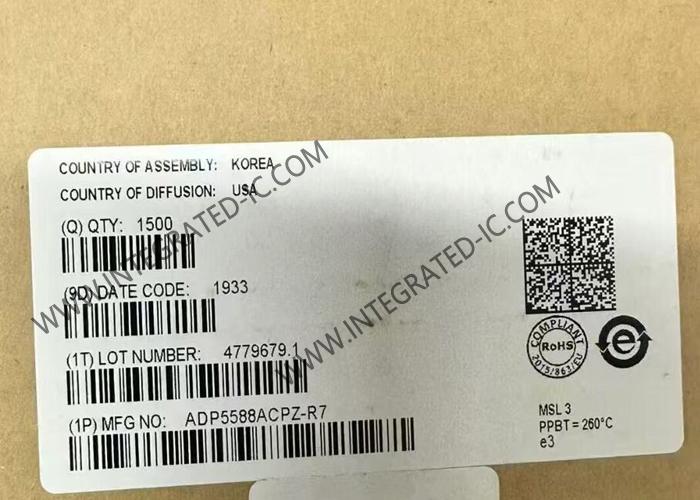

ADP5588ACPZ Integrated Circuit Chip Mobile I/O Expander 400kHz QWERTY Keypad Controller

ADP5588ACPZ Integrated Circuit Chip Mobile I/O Expander 400kHz QWERTY Keypad Controller​

Product Description

ADP5588ACPZ is an I/O port expander and keypad matrix designed for QWERTY type phones that require a large keypad matrix and expanded I/O lines. I/O expander ICs are used in mobile platforms as a solution to the limited number of GPIOs available in the main processor.

Specification

Features

18-GPIO port expander or 10 × 8 keypad matrix
GPIOs configurable to GPIs, GPOs, and keypad rows or columns
Dual light sensor inputs (C8 and C9)
I2C interface
I2C register read auto increment
1.8 V to 3.0 V operation
Keypad lock capability
Open-drain interrupt output
Key press and key release interrupts
GPI interrupt with level programmability
Programmable pull-ups
Key event counter with overflow interrupt
50 μs debounce on the reset line and GPIs
1 μA typical idle current, 55 μA typical polling current drain for one key press
Small 4 mm × 4 mm LFCSP package

Applications

Keypad and I/O expander designed for QWERTY type phones that require a large keypad matrix
