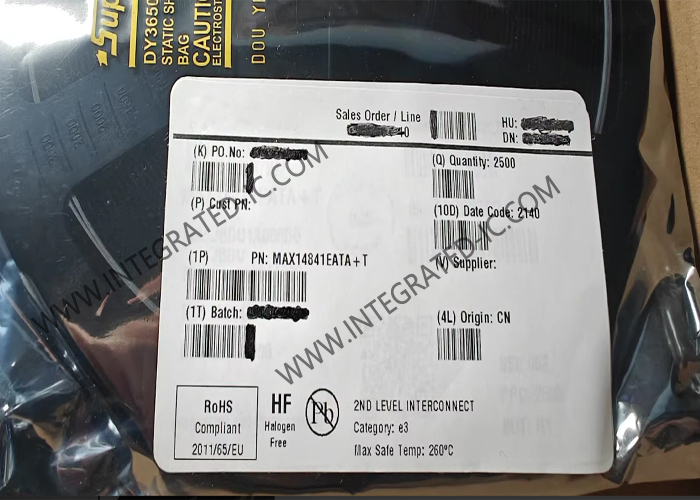

MAX14841EATA Integrated Circuit Chip RS-485 Half-Duplex Transceivers RS-485 Interface IC

MAX14841EATA Integrated Circuit Chip RS-485 Half-Duplex Transceivers RS-485 Interface IC​

Product Description

MAX14841EATA is +3.3V ESD-protected transceivers intended for half-duplex RS-485 communication up to 40Mbps. The MAX14841EATA is optimized for high speeds over extended cable runs while maximizing tolerance to noise.

MAX14841EATA features symmetrical fail-safe and larger receiver hysteresis, providing improved noise rejection and improved recovered signals in high-speed and long cable applications. The MAX14841EATA has true fail-safe receiver inputs guaranteeing a logic-high receiver output when inputs are shorted or open.

Specification

Features

High ESD Protection Provides Increases Equipment Uptime
Integrated Features Increases Robustness
- True Fail Safe Receiver Input (MAX14841E) Keeps Receiver Output Logic-High - Upon Shorts and Open On Receiver Input
- Thermal Self-Protection Shutdown at 160°C Junction Temperature
- High Industrial -40°C to +125°C Ambient Operating Temperature Range/-40°C to +150°C Junction Temperature Range
- Hot Swap Capability Eliminates False Transition During Power-Up or Hot Insertion
Low Current Reduces Power Requirements
- 10µA (max) Shutdown Current
- 1.5mA (typ) Supply Current
- 3.3V Supply Voltage
Available in Space-Saving 8-Pin TDFN-EP (3mm x 3mm) Packages

Applications

Backplane Buses
Fieldbus Networks
HVAC Networks
Industrial Control Systems
Motion Controllers

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
