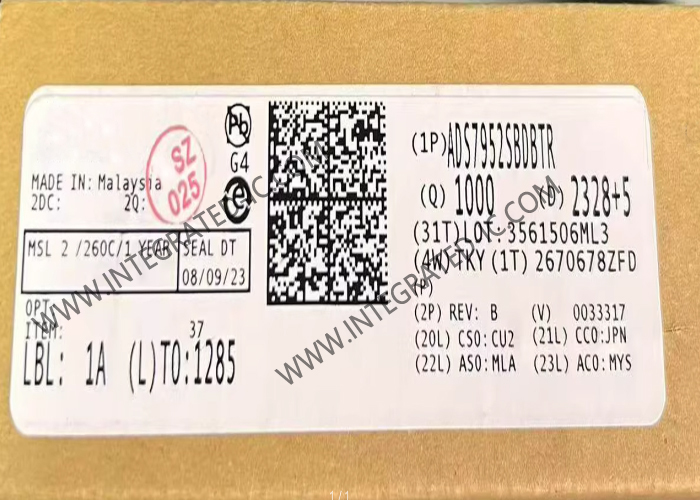

ADS7952SBDBTR Integrated Circuit Chip Analog To Digital Converter 12Bit ADC Converter

ADS7952SBDBTR Integrated Circuit Chip Analog To Digital Converter 12Bit ADC Converter​

Product Description

ADS7952SBDBTR is 12-bit pin compatible multichannel analog-to-digital converter. ADS7952SBDBTR include a capacitor based SAR A/D converter with inherent sample and hold.

ADS7952SBDBTR accept a wide analog supply range from 2.7 V to 5.25 V. Very low power consumption makes these devices suitable for battery-powered and isolated power-supply applications.

Specification

Features

1-MHz Sample Rate Serial Devices
Product Family of 12-, 10-, 8-Bit Resolution
Zero Latency
20-MHz Serial Interface
Analog Supply Range: 2.7 to 5.25 V
I/O Supply Range: 1.7 to 5.25 V
Two SW Selectable Unipolar, Input Ranges: 0 to VREF and 0 to 2 x VREF
Auto and Manual Modes for Channel Selection
4-, 8-Channel Devices and 12-, 16-Channel Devices Share the Same Footprint
Two Programmable Alarm Levels per Channel
Four Individually Configurable GPIOs in TSSOP Package: One GPIO in VQFN Package
Typical Power Dissipation: 14.5 mW (+VA = 5 V, +VBD = 3 V) at 1 MSPS
Power-Down Current (1 µA)
Input Bandwidth (47 MHz at 3 dB)

Applications

PLC/IPC
Optical Line Card Monitoring
Medical Instrumentation
Digital Power Supplies
Multi-Channel, General-Purpose Signal Monitoring
High-Speed Data Acquisition Systems
High-Speed Closed-Loop Systems

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
