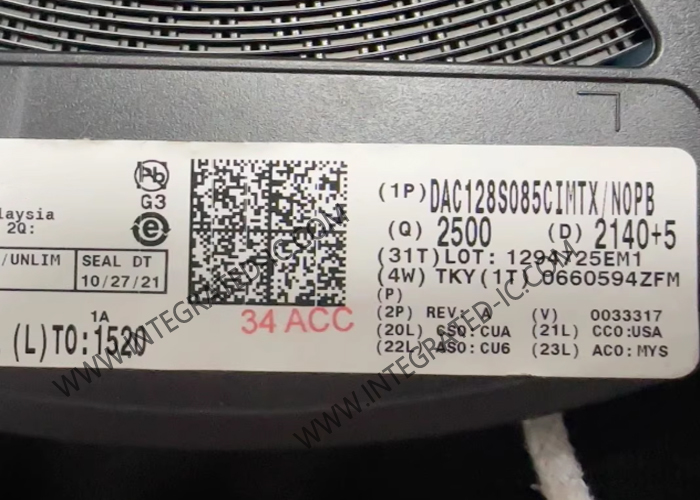

DAC128S085CIMTX Integrated Circuit Chip 12-Bit Digital To Analog Converter TSSOP16

DAC128S085CIMTX Integrated Circuit Chip 12-Bit Digital To Analog Converter TSSOP16​

Product Description

DAC128S085CIMTX is a full-featured, general-purpose OCTAL 12-bit voltage-output digital-to-analog converter (DAC) that can operate from a single 2.7-V to 5.5-V supply and consumes 1.95 mW at 3 V and 4.85 mW at 5 V.

Specification

Features

Ensured Monotonicity
Low Power Operation
Rail-to-Rail Voltage Output
Daisy-Chain Capability
Power-on Reset to 0 V
Simultaneous Output Updating
Individual Channel Power-Down Capability
Wide Power Supply Range (2.7 V to 5.5 V)
Dual Reference Voltages With Range of 0.5 V to VA
Operating Temperature Range of –40°C to 125°C
Smallest Package in the Industry
Resolution 12 Bits
INL ±8 LSB (Maximum)
DNL 0.75 / –0.4 LSB (Maximum)
Settling Time 8.5 μs (Maximum)
Zero Code Error 15 mV (Maximum)
Full-Scale Error –0.75 %FSR (Maximum)
Supply Power
- 1.95 mW (3 V) / 4.85 mW (5 V) Typical
- Power Down 0.3 µW (3 V) / 1 µW (5 V) Typical

Applications

Battery-Powered Instruments
Digital Gain and Offset Adjustment
Programmable Voltage and Current Sources
Programmable Attenuators
Voltage Reference for ADCs
Sensor Supply Voltage
Range Detectors
