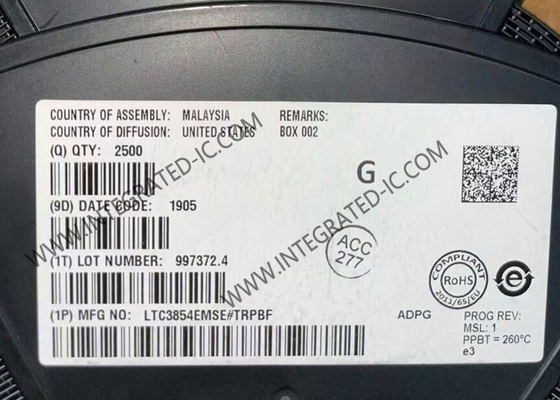

LTC3854EMSE Integrated Circuit Chip High Performance Synchronous Step-Down Switching DC/DC Controller

LTC3854EMSE Integrated Circuit Chip High Performance Synchronous Step-Down Switching DC/DC Controller

Product Description
LTC3854EMSE is a high performance synchronous stepdown switching DC/DC controller that drives an all N-channel synchronous power MOSFET stage.

LTC3854EMSE features a 400kHz constant frequency current mode architecture. The LTC3854EMSE operates from a 4.5V to 38V (40V absolute maximum) input voltage range and regulates the output voltage from 0.8V to 5.5V.

Specifications

Features
Wide Operating VIN Range: 4.5V to 38V
RSENSE or DCR Current Sensing
±1% 0.8V Reference Accuracy Over Temperature
400kHz Switching Frequency
Dual N-channel MOSFET Synchronous Drive
Very Low Dropout Operation: 97% Duty Cycle
Starts Up Into Pre-Biased Output
Adjustable Output Voltage Soft-Start
Output Current Foldback Limiting (Disabled During Soft-Start)
Output Overvoltage Protection
5V LDO for External Gate Drive
OPTI-LOOP® Compensation Minimizes COUT
Low Shutdown IQ: 15μA

Applications
Automotive Systems
Telecom Systems
Industrial Equipment
Distributed DC Power Systems
