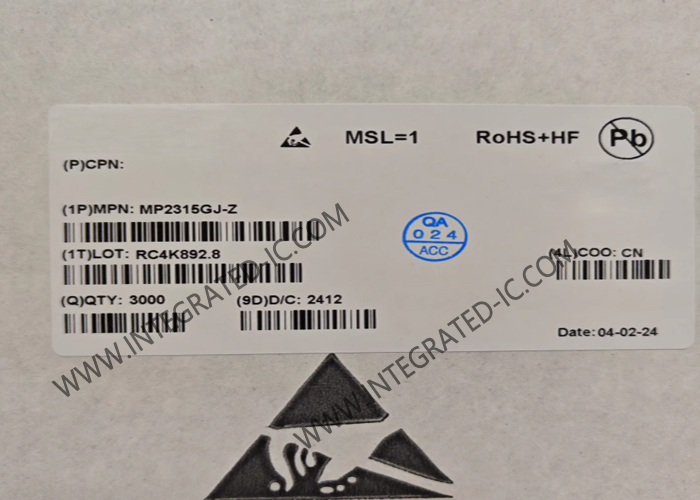

MP2315GJ Integrated Circuit Chip 3A 24V Synchronous Step Down Converter TSOT-23-8

MP2315GJ Integrated Circuit Chip 3A 24V Synchronous Step Down Converter TSOT-23-8

Product Overviews

MP2315GJ is a high frequency synchronous rectified step-down switch mode converter with built in internal power MOSFETs. MP2315GJ offers a very compact solution to achieve 3A continuous output current over a wide input supply range with excellent load and line regulation.

Specification

Features

Wide 4.5V to 24V Operating Input Range
- 3A Load Current
- 90mΩ/40mΩ Low Rds(on) Internal Power
MOSFETs
- Low Quiescent Current
- High Efficiency Synchronous Mode
Operation
- Fixed 500kHz Switching Frequency
- Frequency Sync from 200kHz to 2MHz
External Clock
- AAM Power Save Mode
- Internal Soft Start
- OCP Protection and Hiccup
- Thermal Shutdown
- Output Adjustable from 0.8V
- Available in an 8-pin TSOT-23 package

Applications

Notebook Systems and I/O Power
Digital Set Top Boxes
Flat Panel Television and Monitors

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
