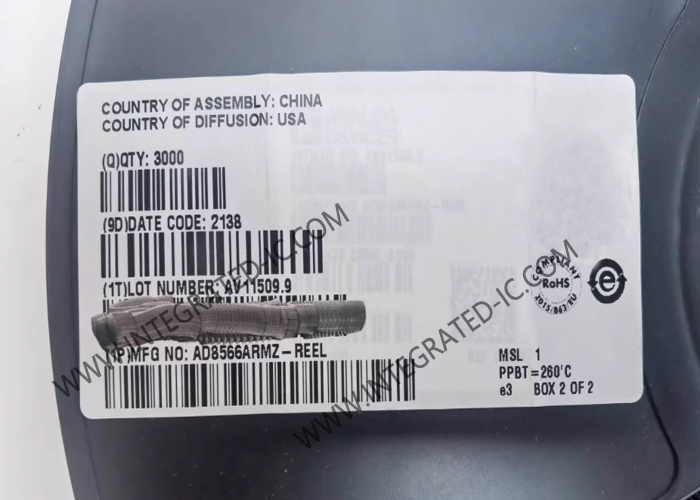

AD8566ARMZ Integrated Circuit Chip 16V Rail-To-Rail Operational Amplifiers
Product Description
AD8566ARMZ is low cost, single-supply, railto-rail input and output operational amplifiers optimized for LCD monitor applications. They are built on an advanced high voltage CBCMOS process.
Specifications
|
Amplifier Type
|
Standard (General Purpose)
|
|
Number of Circuits
|
|
|
Output Type
|
|
|
Slew Rate
|
|
|
Gain Bandwidth Product
|
|
|
Current - Input Bias
|
|
|
Voltage - Input Offset
|
|
|
Current - Supply
|
|
|
Current - Output / Channel
|
|
|
Voltage - Supply Span (Min)
|
|
|
Voltage - Supply Span (Max)
|
|
|
Operating Temperature
|
|
Features
Single-supply operation: 4.5 V to 16 V
Input capability beyond the rails
Rail-to-rail output swing
Continuous output current: 35 mA
Peak output current: 250 mA
Offset voltage: 10 mV
Slew rate: 6 V/μs
Unity gain stable with large capacitive loads
Supply current: 700 μA per amplifier
Qualified for automotive applications
Applications
LCD reference drivers
Portable electronics
Communications equipment
Automotive infotainment systems
