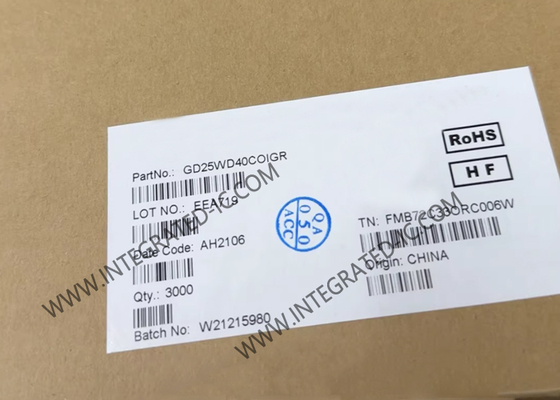

GD25WD40COIGR Memory IC Chip 4Mbit SPI NOR Flash Memory SOP8 Dual Serial Flash Memory

GD25WD40COIGR Memory IC Chip 4Mbit SPI NOR Flash Memory SOP8 Dual Serial Flash Memory​

Product Overviews

GD25WD40COIGR is 4Mbit Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual Output: Serial Clock, Chip Select, Serial Data I/O0 (SI), O1 (SO). The Dual Output data is transferred with maximum speed of 160Mbits/s.

Specification

Features

4Mbit Serial Flash
-512K/256K-byte
-256 bytes per programmable page
Fast Program/Erase Speed
-Page Program time: 1.6ms typical
-Sector Erase time: 150ms typical
-Block Erase time: 0.5/0.8s typical
-Chip Erase time: 6/3s typical
Flexible Architecture
-Uniform Sector of 4K-byte
-Uniform Block of 32/64K-byte
Low Power Consumption
-0.1uA typical standby current
-0.1uA typical power down current
Single Power Supply Voltage
-Full voltage range: 1.65~3.6V
