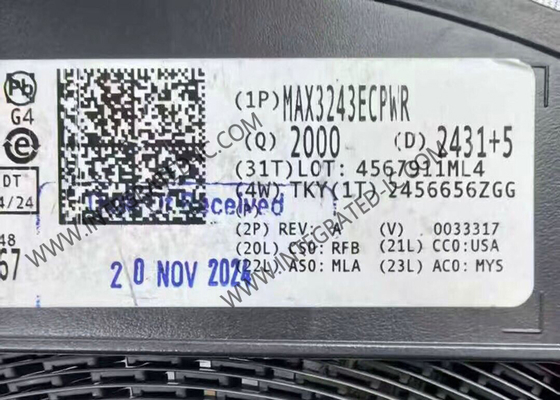

MAX3243ECPWR Integrated Circuit Chip RS-232 Line Driver TSSOP28 RS-232 Line Receiver

MAX3243ECPWR Integrated Circuit Chip RS-232 Line Driver TSSOP28 RS-232 Line Receiver

Product Description

MAX3243ECPWR consists of three line drivers, five line receivers, and a dual charge-pump circuit with ±15-kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8-kV ESD (IEC61000-4-2, Contact Discharge) protection on serial-port connection pins.
MAX3243ECPWR meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector.

Specification

Features

Single-chip and single-supply interface for IBM™ PC/AT™ serial port
ESD Protection for RS-232 bus pins
- ±15-kV Human-body model (HBM)
- ±8-kV IEC61000-4-2, contact discharge
- ±15-kV IEC61000-4-2, air-gap discharge
Meets or exceeds requirements of TIA/EIA-232-F and ITU V.28 standards
Operates with 3-V to 5.5-V VCC supply
Always-active noninverting receiver output (ROUT2B)
Designed to transmit at a data rate up to 500 kbit/s
Low standby current: 1 µA typical
External capacitors: 4 × 0.1 µF
Accepts 5-V logic input with 3.3-V supply
Designed to Be interchangeable with maxim MAX3243E
Serial-Mouse Driveability
Auto-powerdown feature to disable driver outputs when no valid RS-232 signal is sensed

Applications
Battery powered systems
Wired Networking
Data center and enterprise computing
Battery-powered systems
Notebooks
Laptops
Palmtop PCs
Hand-held equipment
