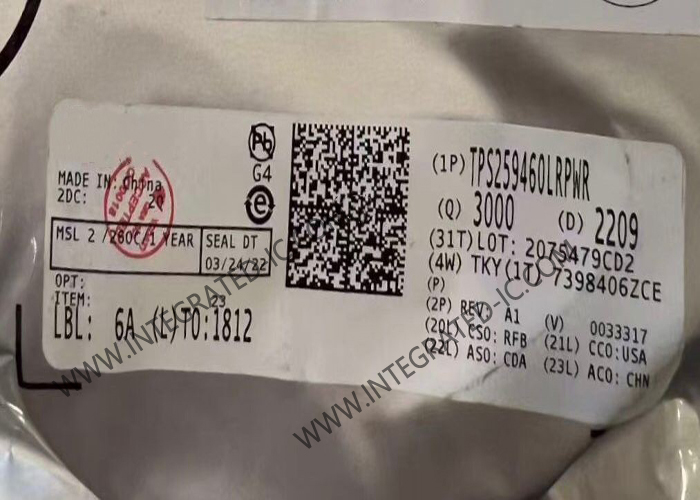

TPS259460LRPWR Integrated Circuit Chip eFuse IC Electronic Fuse 5.5A Hot Swap Controllers

TPS259460LRPWR Integrated Circuit Chip eFuse IC Electronic Fuse 5.5A Hot Swap Controllers​

Product Description

TPS259460LRPWR eFuses is a highly integrated circuit protection and power management solution in a small package. The devices provide multiple protection modes using very few external components and are a robust defense against overloads, short-circuits, voltage surges and excessive inrush current. With integrated back-to-back FETs, the TPS259460LRPWR allows bi-directional current flow during ON state, while blocking current flow in both directions during OFF state, making it well suited for USB OTG (On-The-Go) applications.

Specification

Features

• Wide operating input voltage range: 2.7 V to 23 V
– 28-V absolute maximum
• Integrated back-to-back FETs with low onresistance: RON = 28.3 mΩ (typ.)
– Bi-directional current flow during ON state
– Reverse current blocking during OFF state
• Fast overvoltage protection
– Adjustable Overvoltage Lockout (OVLO) with 1.2-μs (typ.) response time
• Overcurrent protection in forward direction with load current monitor output (ILM)
– Active current limit response
– Adjustable threshold (ILIM): 0.5 A to 6 A
• ±10% accuracy for ILIM > 1 A
– Adjustable transient blanking timer (ITIMER) to allow peak currents up to 2 × ILIM
– Output load current monitor accuracy: ±6% (IOUT ≥ 1 A)
• Fast-trip response for short-circuit protection on OUT pin
– 500-ns (typ.) response time
– Adjustable (2 × ILIM) and fixed thresholds
• Active high enable input with adjustable Undervoltage Lockout threshold (UVLO)
• Adjustable output slew rate control (dVdt)
• Overtemperature protection
• Digital indication options:
– Power Good indication (PG) with adjustable threshold (PGTH) or
– Supply Good (SPLYGD) and Fault (FLT) indications
• Small footprint: QFN 2 mm × 2 mm, 0.45-mm pitch

Applications
• USB On-The-Go (OTG)
• Smartphones
• Tablets
• Digital cameras
• Point of sales terminals
• Wireless chargers
