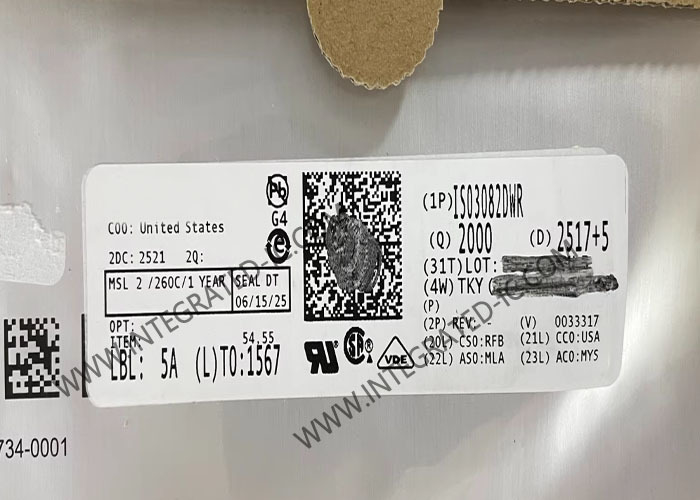

ISO3082DWR Integrated Circuit Chip 200kbps Isolated RS-485 And RS-422 Transceiver

ISO3082DWR Integrated Circuit Chip 200kbps Isolated RS-485 And RS-422 Transceiver​

Product Description

ISO3082DWR is isolated full-duplex differential line drivers and receivers while the ISO3082 and ISO3088 devices are isolated half-duplex differential line transceivers for TIA/EIA 485/422 applications.

ISO3082DWR is ideal for long transmission lines because the ground loop is broken to allow for a much larger common-mode voltage range. The symmetrical isolation barrier of the device is tested to provide 2500 V RMS of isolation for 60 s per UL 1577 between the bus-line transceiver and the logic-level interface.

Specification

Features

Meets or exceeds TIA/EIA RS-485 requirements
Signaling rates up to 20 Mbps
1/8 unit load – up to 256 nodes on a bus
Thermal shutdown protection
Low bus capacitance – 16 pF (typical)
50 kV/µs typical transient immunity
Fail-safe receiver for bus open, short, idle
3.3V inputs are 5-V tolerant
Bus-pin ESD protection
- 12kV HBM between bus pins and GND2
- 6kV HBM between bus pins and GND1

Applications
Security systems
Chemical production
Factory automation
Motor and motion control
HVAC and building automation
