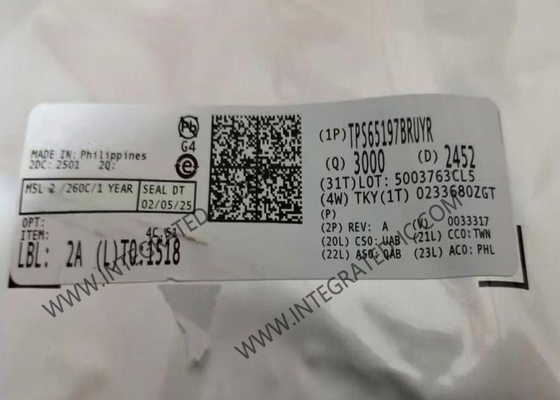

TPS65197BRUYR Integrated Circuit Chip 8-Channel Level Shifter WQFN28

TPS65197BRUYR Integrated Circuit Chip 8-Channel Level Shifter WQFN28
TPS65197BRUYR Integrated Circuit Chip 8-Channel Level Shifter WQFN28

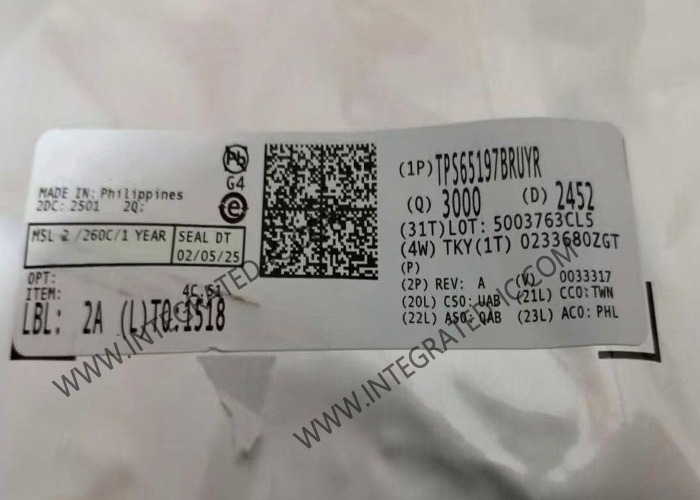

Large Image :  TPS65197BRUYR Integrated Circuit Chip 8-Channel Level Shifter WQFN28

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS65197BRUYR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WQFN-28
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

TPS65197BRUYR Integrated Circuit Chip 8-Channel Level Shifter WQFN28

Description
Part Number: TPS65197BRUYR Maximum Clock Frequency: 100 KHz
Level Shifter/Scan Driver(Ch): 8-Channel Voltage - Supply: 16.5V ~ 45.0V
Operating Temperature: -40℃ To 85℃ Applications: Video Display
Highlight:

8-channel level shifter IC

,

WQFN28 integrated circuit chip

,

TPS65197BRUYR level shifter

TPS65197BRUYR Integrated Circuit Chip 8-Channel Level Shifter WQFN28
Product Description
TPS65197BRUYR is an 8-channel level-shifter with discharge function intended for use in LCD display applications such as Notebooks, Monitors and TVs.
TPS65197BRUYR converts the timing-controller (T-CON) logic-level signals to the high-level signals needed by the gate-in-panel (GIP) display.
Specification
Function Shifter
Applications Video Display
Voltage - Supply 16.5V ~ 45.0V
Mounting Type Surface Mount
Package / Case 28-WFQFN Exposed Pad
Supplier Device Package 28-WQFN (4x4)
Features
  • 8-Channel Level-Shifter (STV, RESET, 6 × CLK)
  • High Output-Voltage Level 16.5 V to 45 V (VGH)
  • Low Output-Voltage Level Down to -20 V (VGL)
  • Selectable Charge-Sharing
    • No Charge-Sharing
    • 2-Channel Charge-Sharing
    • 3-Channel Charge-Sharing
  • 2-Channel Panel Discharge
  • T-CON Failure Detection: No Reset of the Logic
  • Latched Shut-Down Detection (Clocks to VGH)
  • Supports 100-kHz Clock Operating Frequency
  • 28-Pin 4-mm × 4-mm QFN Package
Applications
  • Gate-in-Panel (GIP) LCD
    • Notebook
    • Monitor
    • TV
