MP2410AGJ-Z Integrated Circuit Chip Synchronous Step-Down LED Driver IC TSOT23-6

MP2410AGJ-Z Integrated Circuit Chip Synchronous Step-Down LED Driver IC TSOT23-6
MP2410AGJ-Z Integrated Circuit Chip Synchronous Step-Down LED Driver IC TSOT23-6

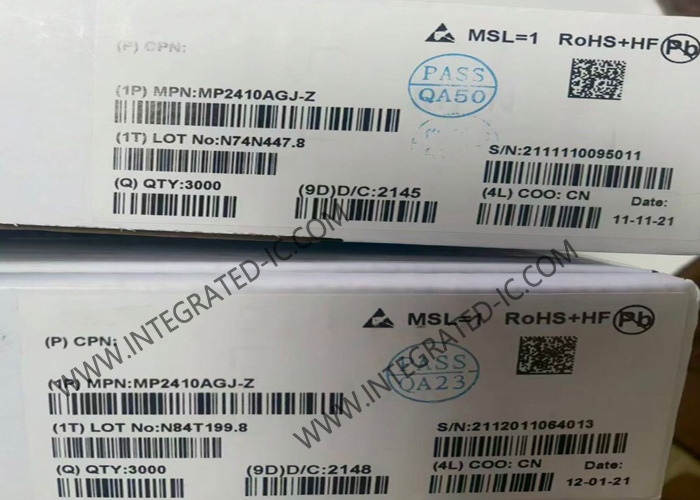

Large Image :  MP2410AGJ-Z Integrated Circuit Chip Synchronous Step-Down LED Driver IC TSOT23-6

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MP2410AGJ-Z
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TSOT23-6
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

MP2410AGJ-Z Integrated Circuit Chip Synchronous Step-Down LED Driver IC TSOT23-6

Description
Part Number: MP2410AGJ-Z Number Of Outputs: 1 Output
Output Current: 2 A Operating Frequency: 1 MHz
Pd - Power Dissipation: 1.25 W Input Voltage: 4.2 V To 24 V
Highlight:

Synchronous Step-Down LED Driver IC

,

TSOT23-6 LED Driver Chip

,

Integrated Circuit LED Driver

MP2410AGJ-Z Integrated Circuit Chip Synchronous Step-Down LED Driver IC TSOT23-6
Product Description

MP2410AGJ-Z is a 24V, monolithic, synchronous, step-down, white LED driver with a built-in power MOSFET and rectifier. MP2410AGJ-Z achieves up to 2A of continuous output current with excellent load and line regulation. Peak current mode operation provides fast transient response and eases loop stabilization.

Specification
Type DC DC Regulator
Topology Step-Down (Buck)
Internal Switch(s) Yes
Number of Outputs 1
Voltage - Supply (Min) 4.2V
Voltage - Supply (Max) 24V
Current - Output / Channel 2A
Frequency 1MHz
Dimming Analog, PWM
Applications Backlight
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23-6 Thin, TSOT-23-6
Supplier Device Package TSOT-23-6
Features
  • 4.2V to 24V Wide Input Range
  • Synchronous Step-Down Converter
  • 100mO Internal High-Side Power MOSFET
  • 80mO Internal Low-Side Synchronous Rectifier
  • Peak Current Mode Control
  • Up to 2A Continuous Output Current
  • 100mV Feedback Voltage
  • Up to 97% Efficiency
  • Fixed 1MHz Switching Frequency
  • Analog and PWM Dimming
  • Cycle-by-Cycle Current Limit
  • Inherent LED Open Protection
  • Output Short-Circuit Protection (SCP)
  • NTC Thermal Protection
  • Thermal Shutdown
  • Auto-Restart Function
  • Available in TSOT23-6 Packages
Applications
  • Infrared LED Driver
  • General LED Driver
  • Flashlight
  • Handheld Computers Backlight
