BQ294700DSGR Integrated Circuit Chip Overvoltage Protection With External Delay Capacitor

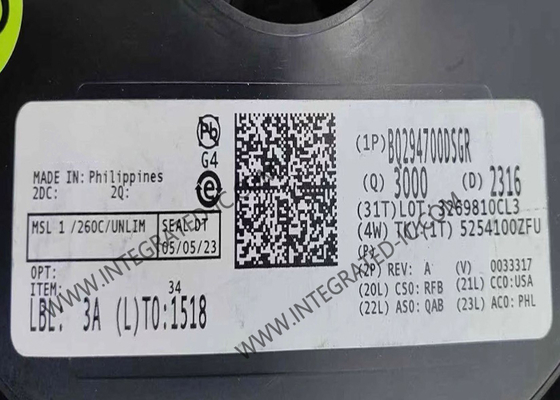

Large Image : BQ294700DSGR Integrated Circuit Chip Overvoltage Protection With External Delay Capacitor

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	BQ294700DSGR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	WSON-8
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

BQ294700DSGR Integrated Circuit Chip Overvoltage Protection With External Delay Capacitor

Description

Part Number:	BQ294700DSGR	Output Voltage::	30 V
Output Current::	4.5 MA	Operating Supply Voltage::	20 V
Maximum Operating Temperature::	+ 85 C	Minimum Operating Temperature::	- 40 C
Highlight:	BQ294700DSGR overvoltage protection IC , integrated circuit chip with delay capacitor , external delay capacitor IC chip

BQ294700DSGR Integrated Circuit Chip Overvoltage Protection With External Delay Capacitor

Product Description

BQ294700DSGR is an overvoltage monitor and protector for Li-Ion battery pack systems. Each cell is monitored independently for an overvoltage condition.

Specifications

Function	Battery Protection
Battery Chemistry	Lithium Ion
Number of Cells	2 ~ 4
Fault Protection	Over Voltage
Operating Temperature	-40°C ~ 110°C (TA)

Features

2-, 3-, and 4-series cell overvoltage protection
External capacitor-programmed delay timer
Factory programmed OVP threshold (threshold range 3.85 V to 4.6 V)
Output options: active high or open drain active low
High-accuracy overvoltage protection: ±10 mV
Low power consumption ICC ≈ 1 µA (VCELL(ALL) < VPROTECT)
Low leakage current per cell input < 100 nA
Small package footprint - 8-pin WSON (2.00 mm x 2.00 mm)

Applications

Notebooks
UPS battery backup
