LMR14206XMK Integrated Circuit Chip 600mA 1.25MHz Step-Down Voltage Regulator

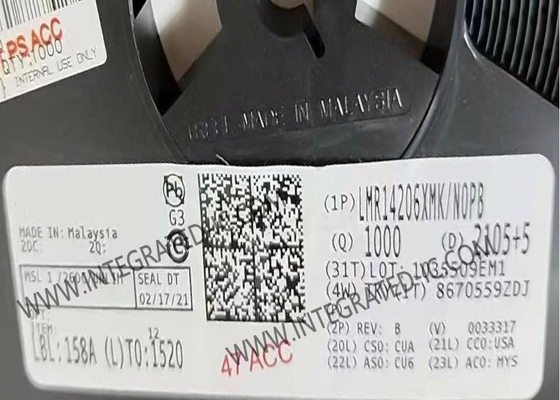

Large Image : LMR14206XMK Integrated Circuit Chip 600mA 1.25MHz Step-Down Voltage Regulator

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LMR14206XMK

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TSOT-23-6
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

LMR14206XMK Integrated Circuit Chip 600mA 1.25MHz Step-Down Voltage Regulator

Description

Part Number:	LMR14206XMK	Output Voltage::	765 MV To 34 V
Output Current::	600 MA	Number Of Outputs::	1 Output
Input Voltage - Min::	4.5 V	Input Voltage - Max::	42 V
Highlight:	LMR14206XMK step-down voltage regulator , 600mA integrated circuit chip , 1.25MHz step-down voltage regulator

LMR14206XMK Integrated Circuit Chip 600mA 1.25MHz Step-Down Voltage Regulator

Product Description

LMR14206XMK is a PWM DC/DC buck (step-down) regulator. With a wide input range from 4.5V-42V, they are suitable for a wide range of applications such as power conditioning from unregulated sources. They feature a low RDSON (0.9Ω typical) internal switch for maximum efficiency (85% typical). Operating frequency is fixed at 1.25 MHz allowing the use of small external components while still being able to have low output voltage ripple. Soft-start can be implemented using the shutdown pin with an external RC circuit allowing the user to tailor the softstart time to a specific application.

Specifications

Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	42V
Voltage - Output (Min/Fixed)	0.765V
Voltage - Output (Max)	34V
Current - Output	600mA
Frequency - Switching	1.25MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)

Features

Input Voltage Range of 4.5V to 42V
Output Voltage Range of 0.765V to 34V
Output Current up to 0.6A
1.25 MHz Switching Frequency
Low Shutdown Iq, 16 µA Typical
Short Circuit Protected
Internally Compensated
Soft-Start Function
Thin 6-Pin SOT Package (2.97 x 1.65 x 1mm)
Fully Enabled for WEBENCH® Power Designer

Performance Benefits

Tight Accuracy for Powering Digital ICs
Extremely Easy to Use
Tiny Overall Solution Reduces System Cost

Applications

Point-of-Load Conversions from 5V, 12V, and 24V Rails
Space Constrained Applications
Battery Powered Equipment
Industrial Distributed Power Applications
Power Meters
Portable Hand-Held Instruments
