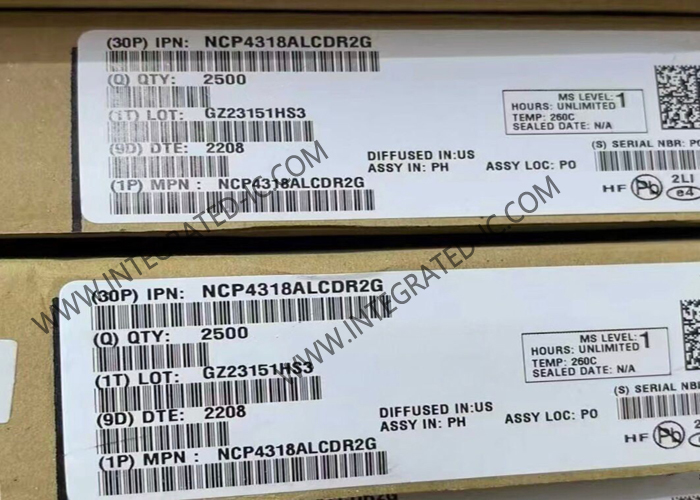

NCP4318ALCDR2G Integrated Circuit Chip 8mA Synchronous Rectifier Controller SOIC8

NCP4318ALCDR2G Integrated Circuit Chip 8mA Synchronous Rectifier Controller SOIC8
NCP4318ALCDR2G Integrated Circuit Chip 8mA Synchronous Rectifier Controller SOIC8

Large Image :  NCP4318ALCDR2G Integrated Circuit Chip 8mA Synchronous Rectifier Controller SOIC8

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: NCP4318ALCDR2G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC−8
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

NCP4318ALCDR2G Integrated Circuit Chip 8mA Synchronous Rectifier Controller SOIC8

Description
Part Number: NCP4318ALCDR2G Number Of Outputs: 1 Output
Switching Frequency: 22 KHz To 500 KHz Output Voltage: 10.5 V
Output Current: 4.5 A Operating Temperature: -40°C ~ 125°C (TJ)
Highlight:

8mA synchronous rectifier controller IC

,

SOIC8 integrated circuit chip

,

NCP4318ALCDR2G rectifier controller

NCP4318ALCDR2G Integrated Circuit Chip 8mA Synchronous Rectifier Controller SOIC8
Product Description

NCP4318ALCDR2G is a mixed mode, which uses instantaneous drain voltage and previous dead time information, Synchronous Rectification (SR) controller for LLC resonant converter with minimum external components.

Specification
Applications Resonant Converter Controller
Voltage - Supply 0V ~ 35V
Current - Supply 8 mA
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Features
  • Mixed Mode SR Turn−off Control
  • Anti Shoot−through Control for Reliable SR Operation
  • 200 V−rated Drain Sensing and Dedicated Source Sensing Pins
  • Advanced Adaptive Dead Time Control
  • SR Current Inversion Detection
  • Adaptive Minimum Turn−on Time for Noise Immunity
  • SR Conduction Time Increase Rate Limitation
  • Multi−level Turn−off Threshold Voltage
  • Adaptive Gate Voltage (10 V, 6 V)
  • Low Operating Current (100 A) in Green Mode
  • Soft Start with 0 V / 6 V Gate Output Voltage
  • Short Turn−on and Turn−off Delay Time (30 ns / 30 ns)
  • High Gate Sourcing and Sinking Current (1.5 A / 4.5 A)
  • Wide Operating Supply Voltage Range from 6.5 V to 35 V
  • Wide Operating Frequency Range (22 kHz to 500 kHz)
Applications
  • High Power Density Adapters
  • Large Screen LED−TV and OLED−TV Power Supplies
  • High Efficiency Desktop and Server Power Supplies
  • Networking and Telecom Power Supplies
  • High Power LED Lighting
