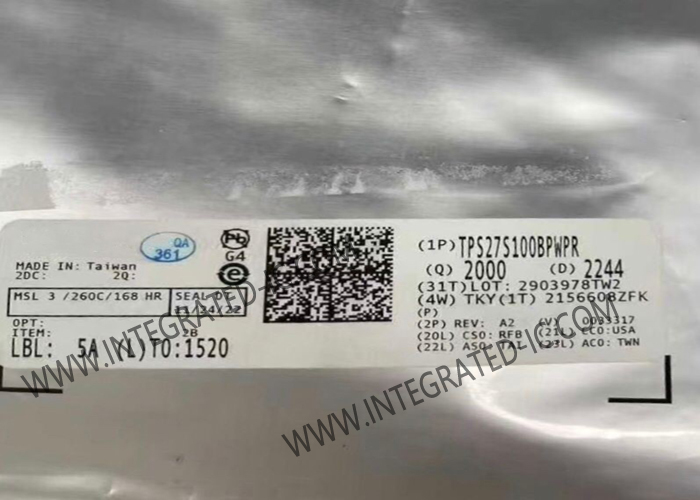

TPS27S100BPWPR Integrated Circuit Chip 40V High Side Switch HTSSOP14 Power Switches

TPS27S100BPWPR is a single-channel, fully-protected, high-side switch with an integrated NMOS and charge pump. Full diagnostics and high-accuracy current-monitor features enable intelligent control of the load. An adjustable current-limit function greatly improves the reliability of the whole system.

• 80-mΩ Single-channel High-side switch with full diagnostics
• Current monitor analog output
• Wide operating voltage 3.5 V to 40 V
• Very-low standby current, <0.5 µA
• Operating junction temperature, -40 to 150°C
• Input control, 3.3-V and 5-V logic compatible
• High-accuracy current monitor, ±30 mA at 1 A
• Adjustable current limit (0.5-A to 6-A) with external resistor, ±20% at 0.5 A
• Diagnostic enable function for multiplexing of MCU, analog or digital interface
• Protection
  • Overload and short-circuit-to-GND protection
  • Inductive load negative voltage clamp
  • Undervoltage lockout (UVLO) protection
  • Thermal shutdown and swing with self recovery
  • Loss of GND protection
• Diagnostic
  • On- and Off-State output Open-Load / short to supply detection
  • Overload and short to ground detection
  • Thermal shutdown and swing detection

• Programmable logic controller
• Building automation
• Telecom/networks
