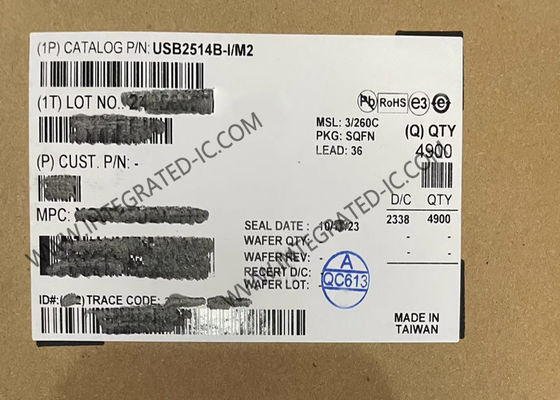

USB2514B-I/M2 Integrated Circuit Chip Low Power USB 2.0 High-Speed Hub Controller
USB2514B-I/M2 Integrated Circuit Chip Low Power USB 2.0 High-Speed Hub Controller
USB2514B-I/M2 hub is a family of low power, configurable, MTT (multi transaction translator) hub controller IC products for embedded USB solutions. The 4 in the part number indicates the number of downstream ports available, while the B indicates battery charging support. The hub supports lowspeed, full-speed, and hi-speed (if operating as a hispeed hub) downstream devices on all of the enabled downstream ports.
Specifications
| Protocol |
USB |
| Function |
Hub Controller |
| Interface |
USB |
| Voltage - Supply |
3V ~ 3.6V |
| Current - Supply |
70mA |
| Operating Temperature |
-40°C ~ 85°C |
Highlights
High performance, low-power, small footprint hub controller IC with 2, 3, or 4 downstream ports
Fully compliant with the USB 2.0 Specification
Enhanced OEM configuration options available through either a single serial I2C EEPROM, or SMBus slave port
MultiTRAK™ - High-performance multiple transaction translator which provides one transaction translator per port
PortMap - Flexible port mapping and disable sequencing
PortSwap - Programmable USB differential-pair pin locations ease PCB design by aligning USB signal lines directly to connectors
PHYBoost - Programmable USB signal drive strength for recovering signal integrity using 4-level driving strength resolution
Features
- USB251xB/xBi products are fully footprint compatible with USB251x/xi/xA/xAi products as direct drop-in replacements
- Cost savings include using the same PCB components and application of USB-IF Compliance by Similarity
- Full power management with individual or ganged power control of each downstream port
- Fully integrated USB termination and pull-up/pulldown resistors
- Supports a single external 3.3 V supply source; internal regulators provide 1.2 V internal core voltage
- Onboard 24 MHz crystal driver or external 24 MHz clock input
- Customizable vendor ID, product ID, and device ID
- 4 kilovolts of HBM JESD22-A114F ESD protection (powered and unpowered)
- Supports self- or bus-powered operation
- Supports the USB Battery Charging specification Rev. 1.1 for Charging Downstream Ports (CDP)
- USB251xB products support the extended commercial temperature range of 0ºC to +85ºC
Applications
- LCD monitors and TVs
- Multi-function USB peripherals
- PC motherboards
- Set-top boxes, DVD players, DVR/PVR
- Printers and scanners
- PC media drive bay
- Portable hub boxes
- Mobile PC docking
- Embedded systems
