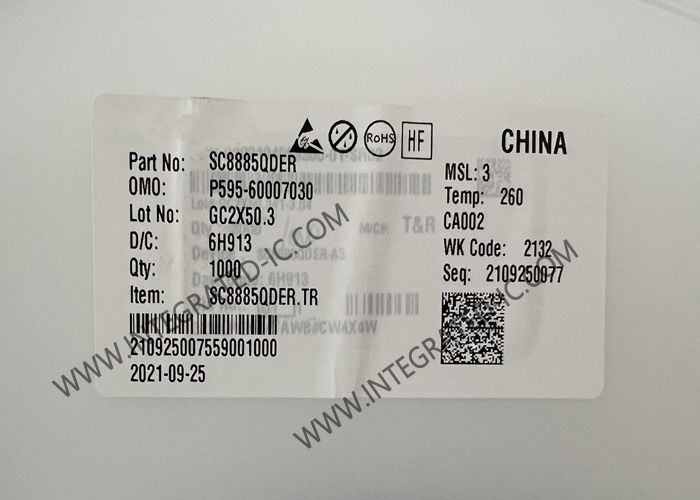

SC8885QDER Integrated Circuit Chip Synchronous Bi-Directional Buck-Boost Charger Controller
Product Description
SC8885QDER is a synchronous buck-boost charger, which supports buck mode, boost mode and buck-boost mode during forward charging or reverse discharging operation. SC8885QDER manages 1 to 4 cells battery charging from wide input range from 3.5V to 28V, supporting pre-charge, constant current charge, constant voltage charge. The battery discharging mode supports wide output range from 3V to 24V with 8mV resolution.
Specifications
| VIN range |
3.5~24V |
| Abs. VIN (max) |
29V |
| Battery Cell # |
1-4s |
| Charge Current (max) |
8A |
| Topology |
Buck-boost |
| OTG voltage |
3V-24V |
| Prog. OTG Voltage |
I2C Prog |
| Max. OTG current |
6.4A |
| Rec'd app. power level |
65W typ. |
| I2C Ctrl |
yes, SMBus |
| Prog. Ilim |
I2C prog or ext. res |
| ADC |
10-bit |
| PowerPath |
NVDC PowerPath |
| Features |
Peak Power Mode, VAP, PTM Power monitor, /PROCHOT |
| Package |
QFN 4x4 |
Features
- Wide input range: 3.5V to 28V, 30V sustainable
- High efficiency Buck-Boost conversion
- Buck-Boost battery charger for 1 to 4 cell batteries
- Charging management including precharge, fast charge, constant voltage charge, auto-wake up
- Reverse discharging mode, output voltage range: 3V to 24V with 8 mV resolution, comply with USB PD 3.0 standards
- NVDC PowerPath management and dynamic power management
- SMBus interface
- Input current limit set by external resistor and internal register
- Switching frequency: 800kHz /1.2MHz
- Integrated PSYS/IADPT/IBAT pin for power and current monitor, compliant with Intel IMVP8/9 standard
- Integrated processor hot indication(/PROCHOT) pin
- Pass through mode (PTM)
- Integrated VMIN active protection (VAP) to supplement system peak power when only battery exists
- 2-Level input current limit for CPU peak power
- Input current optimizer (ICO) algorithm for maximum adapter power capacity
- Learn mode and ship mode for system application
- Integrated 10-bit high accuracy ADC
