LAN8720A-CP-TR Ethernet IC RMII 10/100 Ethernet Transceiver With HP Auto-MDIX Support

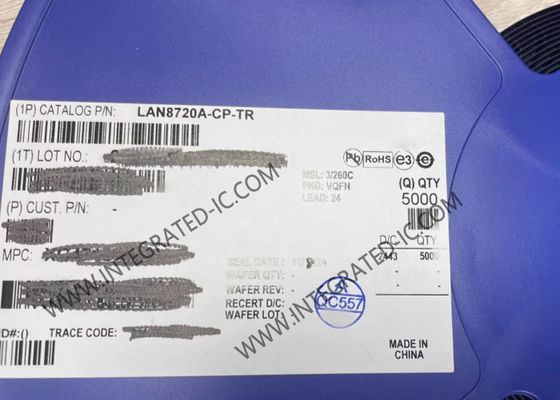

Large Image : LAN8720A-CP-TR Ethernet IC RMII 10/100 Ethernet Transceiver With HP Auto-MDIX Support

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LAN8720A-CP-TR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-24
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

LAN8720A-CP-TR Ethernet IC RMII 10/100 Ethernet Transceiver With HP Auto-MDIX Support

Description

Part Number:	LAN8720A-CP-TR	Standard::	10BASE-T, 100BASE-TX
Number Of Transceivers::	1 Transceiver	Data Rate::	10 Mb/s, 100 Mb/s
Supply Voltage - Min::	1.14 V	Supply Voltage - Max::	1.26 V
Highlight:	LAN8720A Ethernet IC transceiver , RMII 10/100 Ethernet IC , Ethernet transceiver with HP Auto-MDIX

LAN8720A-CP-TR Ethernet IC RMII 10/100 Ethernet Transceiver With HP Auto-MDIX Support

LAN8720A-CP-TR is a low-power 10BASE-T/100BASE-TX physical layer (PHY) transceiver with variable I/O voltage that is compliant with the IEEE 802.3-2005 standards.

Specifications

Type	Transceiver
Protocol	MII, RMII
Number of Drivers/Receivers	2/2
Duplex	Full
Data Rate	100Mbps
Voltage - Supply	1.6V ~ 3.6V
Operating Temperature	0°C ~ 85°C

Highlights

Single-Chip Ethernet Physical Layer Transceiver (PHY)
Comprehensive flexPWR® Technology
Flexible Power Management Architecture
LVCMOS Variable I/O voltage range: +1.6V to +3.6V
Integrated 1.2V regulator
HP Auto-MDIX support
Miniature 24-pin QFN/SQFN lead-free RoHS compliant packages (4 x 4mm)

Features

High-Performance 10/100 Ethernet Transceiver
Compliant with IEEE802.3/802.3u (Fast Ethernet)
Compliant with ISO 802-3/IEEE 802.3 (10BASE-T)
Loop-back modes
Auto-negotiation
Automatic polarity detection and correction
Link status change wake-up detection
Vendor specific register functions
Supports the reduced pin count RMII interface
Power and I/Os
Various low power modes
Integrated power-on reset circuit
Two status LED outputs
Latch-Up Performance Exceeds 150mA per EIA/JESD 78, Class II
May be used with a single 3.3V supply

Applications

Set-Top Boxes
Networked Printers and Servers
Test Instrumentation
LAN on Motherboard
Embedded Telecom Applications
Video Record/Playback Systems
Cable Modems/Routers
DSL Modems/Routers
Digital Video Recorders
IP and Video Phones
Wireless Access Points
Digital Televisions
Digital Media Adapters/Servers
Gaming Consoles
POE Applications
