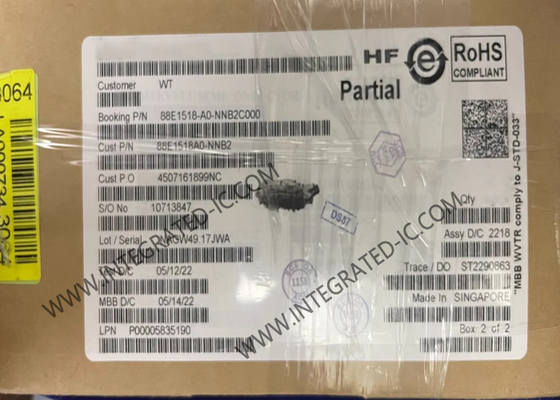

88E1518-A0-NNB2C000 Ethernet IC Integrated 10/100/1000 Mbps Energy Efficient Ethernet Transceivers

88E1518-A0-NNB2C000 Gigabit Ethernet (GbE) transceiver is physical layer devices each containing a single Gigabit Ethernet transceiver. The transceivers implement the Ethernet physical layer portion of the 1000BASE-T, 100BASE-TX, and 10BASE-T standards.

• Four RGMII timing modes including integrated delays
• Supports EEE (IEEE 802.3az)
• Implements EEE with legacy or non-EEE MAC
• Synchronous Ethernet
• IEEE 1588v2 support
• Wake on LAN (WoL)
• Integrated Switching Voltage Regulator
• Advanced Virtual Cable Tester® (VCT™)
• 48-pin QFN 7 mm x 7 mm Green package

• This eliminates the need for adding additional trace delays on the PCB
• Extended energy savings through incorporation of the IEEE 802.3az standard
• Additional support added to allow EEE enablement on non-EEE MACs
• Accurate and low-cost clock recovery for Time-aware applications
• Enables highly accurate Precision Timing Protocol applications including wireless backhaul
• Provides programmable lower power (S5) event/pattern and link change detection
• Allows devices to run off single 3.3V supply
• Detects and reports potential cabling issues to within one meter of the distance to the fault
• Environmentally friendly, small form factor for minimal real estate requirements

• 88E1518-A0-NNB2C000 transceivers deliver optimal physical layer interfacing and features for a broad range of applications within the Enterprise, embedded, consumer, and Metro/service provider market segments.
• 88E1518-A0-NNB2C000 provides complete GbE transceiver solutions with complete software compatibility. To shorten system manufacturers design cycles and accelerate time-to-market, Marvell provides complete Alaska reference designs and supporting docs with schematics, layout files and other documentation.
