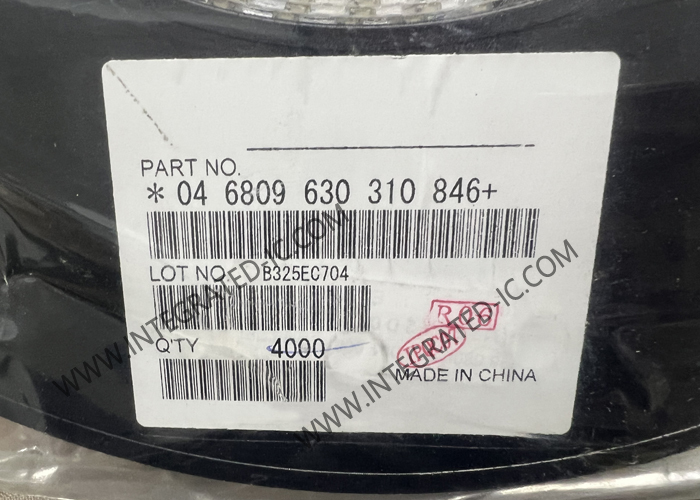

046809630310846+ Connectors FPC/FFC Connectors 6809 Series Flat Flexible Connectors

046809630310846+ Connectors FPC/FFC Connectors 6809 Series Flat Flexible Connectors
046809630310846+ Connectors FPC/FFC Connectors 6809 Series Flat Flexible Connectors

Large Image :  046809630310846+ Connectors FPC/FFC Connectors 6809 Series Flat Flexible Connectors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 046809630310846+
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 30POS
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

046809630310846+ Connectors FPC/FFC Connectors 6809 Series Flat Flexible Connectors

Description
Part Number: 046809630310846+ Series: 6809
Flat Flex Type: FFC, FPC Number Of Positions: 30
Voltage Rating: 50V Operating Temperature: -40°C ~ 85°C
Highlight:

6809 Series FPC connectors

,

FFC flat flexible connectors

,

6809 Series FFC connectors

046809630310846+ Connectors FPC/FFC Connectors 6809 Series Flat Flexible Connectors
Product Description

046809630310846+ is 6809 Series FPC/FFC Connectors. The 6809 Series possess enhanced robustness after implementing measures aimed at reducing breakage of connectors caused by human error. These low profile products feature a pitch of 0.5mm, bottom contact, front flip type with a height of 0.93mm for mounting area, and can be applied to FPC/FFC thicknesses of 0.3mm.

046809630310846+ Suitable for smartphones, tablet PCs, laptops, audio equipment and industrial equipment etc.

Specification
Part Number 046809630310846+
Pitch 0.500mm
Connection Style Right angle
Height 0.93mm
Width 3.75mm
Length 17.37mm
No. of Positions 30
Lock Type Front flip
Operating Temperature Range -40℃ ~ 85℃
Applicable FPC/FFC Thickness 0.3mm
Rated Current(signal) DC 0.5A
Rated Voltage DC 50V
Withstanding Voltage AC 200Vrms,1min.
Features
  • Flat or notched type FPC/FFC cables are available.
  • Misalignments of the contact position are prevented by combining the connector to a notched FPC/FFC.
Applications
Smartphone/Tablet PC
Laptop
Audio equipment
Gaming Equipment
Industrial Equipment
Flat TV
