KTU1121AEUAJ-TD Integrated Circuit Chip USB Type-C Port Protector For CC And SBU Pins

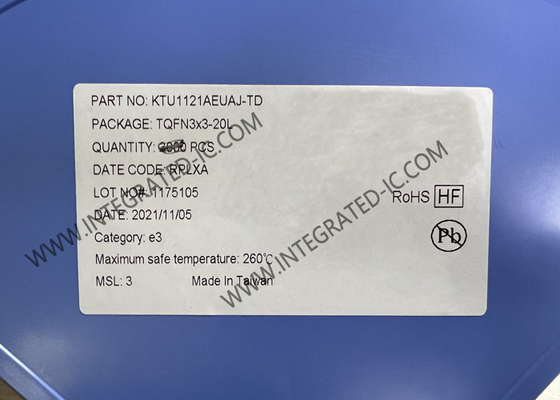

Large Image : KTU1121AEUAJ-TD Integrated Circuit Chip USB Type-C Port Protector For CC And SBU Pins

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	KTU1121AEUAJ-TD

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TQFN33-20
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

KTU1121AEUAJ-TD Integrated Circuit Chip USB Type-C Port Protector For CC And SBU Pins

Description

Part Number:	KTU1121AEUAJ-TD	Current - Supply:	40µA
Applications:	USB Type C	Voltage - Supply:	2.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C	Package:	TQFN33-20
Highlight:	USB Type-C port protector IC , Integrated circuit for CC SBU pins , Type-C protector chip with warranty

KTU1121AEUAJ-TD Integrated Circuit Chip USB Type-C Port Protector For CC And SBU Pins

Product Description

KTU1121AEUAJ-TD provides four conducting paths with overvoltage protection (OVP) for Type-C's CC, SBU signals. Once an overvoltage event is detected, it will shut down all paths to protect circuits in system side, like PD controller from damage.

Specifications

Applications	USB Type C
Current - Supply	40µA
Voltage - Supply	2.5V ~ 5.5V
Operating Temperature	-40°C ~ 85°C

Features

Thunderbolt™ compatible
Overvoltage Protection
- 24VDC Tolerance on CC1/2, SBU1/2
- CC1/2 OVP = 5.8V
- SBU1/2 OVP = 4.8V
- Fast 70ns Response Time
IEC61000-4-5 Surge Protection
- ±40V Surge Tolerance on CC1/2
- ±30V Surge Tolerance on SBU1/2
IEC61000-4-2 ESD Protection
- ±15kV air gap on CC1/2, SBU1/2
- ±8kV contact on CC1/2, SBU1/2
- ±2kV HBM on all pins (JEDEC JS-001-2017)
CC Switches:
- 1.25A, 270mΩ, 40pF, 140MHz
- Automatic 5.1kΩ dead battery pull-down
SBU Switches:
- 3Ω, 11pF, 800MHz
2.5V to 5.5V Operating Supply Voltage Range
-40°C to 85°C Operating Temperature Range
16-bump WLCSP 1.7mmx1.7mm (0.4mm pitch)
20 pin TQFN 3mmx3mm (0.4mm pitch)
RoHS and Green Compliant

Applications

Notebook PCs, Netbooks, Tablets, Monitors, TVs, Gaming Devices, Set-Top Boxes, Networking
