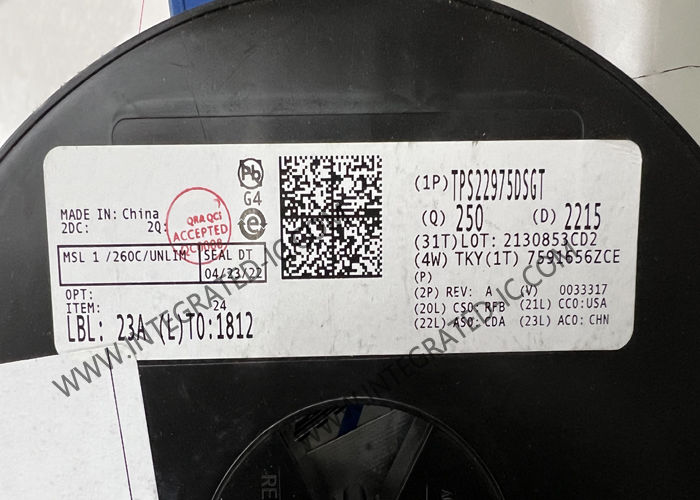

TPS22975DSGT Integrated Circuit Chip 6A Load Switches 16mOhm Power Switch IC WSON8

TPS22975DSGT is a single-channel load switch that provides a configurable rise time to minimize inrush current. TPS22975DSGT contains an N-channel MOSFET that can operate over an input voltage range of 0.6 V to 5.7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. TPS22975DSGT has an optional 230-Ω on-chip load resistor for quick output discharge when switch is turned off.

• Integrated Single-Channel Load Switch
• Input Voltage Range: 0.6 V to VBIAS
• VBIAS Voltage Range: 2.5 V to 5.7 V
• On-Resistance (RON) - RON = 16 mΩ (typical) at VIN = 0.6 V to 5.7 V, VBIAS = 5.7 V
• 6-A Maximum Continuous Switch Current
• Low Quiescent Current - 37 µA (typical) at VIN = VBIAS = 5 V
• Low-Control Input-Threshold Enables Use of 1.2-, 1.8-, 2.5-, and 3.3-V Logic
• Configurable Rise Time
• Thermal Shutdown
• Quick-Output Discharge (QOD) (Optional)
• SON 8-pin Package with Thermal Pad

• Ultrabook™
• Notebooks and Netbooks
• Tablet PC
• Consumer Electronics
• Set-top Boxes and Residential Gateways
• Telecom Systems
• Solid State Drives (SSDs)

A: Yes, all products are original, new original import is our purpose.

A: We are ISO 9001:2015 Certified Company and member of ERAI.

A: Yes, we support sample order and small order. Sample cost is different according to your order or project.

A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
