AO7800 Integrated Circuit Chip 20V Dual N-Channel MOSFET Transistors Low Voltage MOSFETs

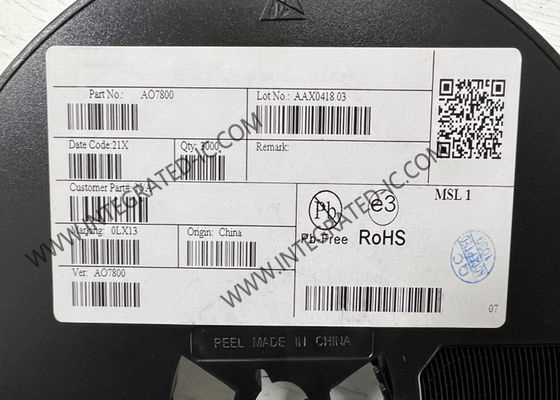

Large Image : AO7800 Integrated Circuit Chip 20V Dual N-Channel MOSFET Transistors Low Voltage MOSFETs

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AO7800

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SC70-6L
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

AO7800 Integrated Circuit Chip 20V Dual N-Channel MOSFET Transistors Low Voltage MOSFETs

Description

Part Number:	AO7800	Configuration:	2 N-Channel (Dual)
Drain To Source Voltage (Vdss):	20V	Current - Continuous Drain (Id) @ 25°C:	900mA
Power - Max:	300mW	Operating Temperature:	-55°C ~ 150°C (TJ)
Highlight:	20V dual N-Channel MOSFET transistors , low voltage MOSFET integrated circuit , AO7800 IC chip with MOSFET

AO7800 Integrated Circuit Chip 20V Dual N-Channel MOSFET Transistors Low Voltage MOSFETs

Product Description

AO7800 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V, in the small SOT363 footprint. It can be used for a wide variety of applications, including load switching, low current inverters and low current DCDC converters. It is ESD protected.

Specifications

Parameter	Value
Part Number	AO7800
Package	SC70-6L
Configuration	Dual
Polarity	N
VDS (V)	20
RDS(ON) max (mΩ) at VGS= 4.5V	300
RDS(ON) max (mΩ) at VGS= 2.5V	350
RDS(ON) max (mΩ) at VGS= 1.8V	450
VGS (±V)	8
ID @ 25°C (A)	0.90
PD @ 25°C (W)	0.30
Qg (4.5V)(nC)	1.57
VGS(th) max (V)	0.90
Ciss (pF)	101
Coss (pF)	17
Crss (pF)	14
Qgd (nC)	0.36
tD(on) (ns)	3.20
tD(off) (ns)	15.50
Trr (ns)	6.70
Qrr (nC)	1.60
ESD Diode	Yes
Tj max (°C)	150
Qualification	Industrial

Key Features

VDS (V) = 20V
ID = 0.9 A (VGS = 4.5V)
RDS(ON) < 300mW (VGS = 4.5V)
RDS(ON) < 350mW (VGS = 2.5V)
RDS(ON) < 450mW (VGS = 1.8V)
