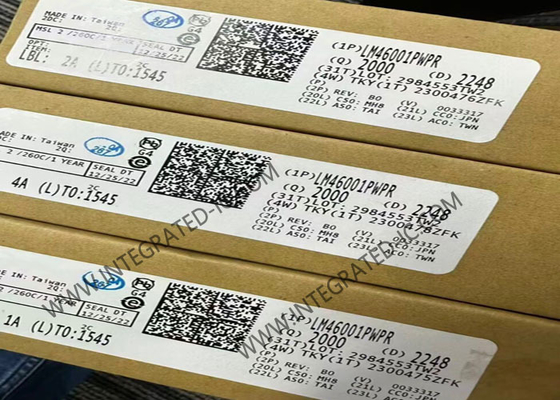

LM46001PWPR Integrated Circuit Chip 1A Synchronous Step-Down Voltage Converter

LM46001PWPR Integrated Circuit Chip 1A Synchronous Step-Down Voltage Converter
LM46001PWPR Integrated Circuit Chip 1A Synchronous Step-Down Voltage Converter

Large Image :  LM46001PWPR Integrated Circuit Chip 1A Synchronous Step-Down Voltage Converter

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LM46001PWPR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HTSSOP-16
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

LM46001PWPR Integrated Circuit Chip 1A Synchronous Step-Down Voltage Converter

Description
Part Number: LM46001PWPR Output Voltage:: 1 V To 28 V
Output Current:: 1 A Number Of Outputs:: 1 Output
Input Voltage - Min:: 3.5 V Input Voltage - Max:: 60 V
Highlight:

1A synchronous step-down converter IC

,

LM46001PWPR voltage regulator chip

,

step-down voltage converter with warranty

LM46001PWPR Integrated Circuit Chip 1A Synchronous Step-Down Voltage Converter
Product Description

The LM46001PWPR regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 1 A of load current from an input voltage ranging from 3.5 V to 60 V. The LM46001PWPR provides exceptional efficiency, output accuracy, and dropout voltage in a very small solution size. An extended family is available in 0.5-A and 2-A load current options in pin-to-pin compatible packages.

Specifications
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 3.5V
Voltage - Input (Max) 60V
Voltage - Output (Min/Fixed) 1V
Voltage - Output (Max) 28V
Current - Output 1A
Frequency - Switching 200kHz ~ 2.2MHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 125°C (TJ)
Features
  • 24-µA Quiescent Current in Regulation
  • High Efficiency at Light Load (DCM and PFM)
  • Meets EN55022/CISPR 22 EMI standards
  • Integrated Synchronous Rectification
  • Adjustable Switching Frequency: 200 kHz to 2.2 MHz (500 kHz default)
  • Frequency Synchronization to External Clock
  • Internal Compensation
  • Stable With Many Combinations of Ceramic, Polymer, Tantalum, and Aluminum Capacitors
  • Power-Good Flag
  • Soft Start into Pre-Biased Load
  • Internal Soft Start: 4.1 ms
  • Extendable Soft-Start Time by External Capacitor
  • Output Voltage Tracking Capability
  • Precision Enable to Program System UVLO
  • Output Short-Circuit Protection With Hiccup Mode
  • Overtemperature Thermal Shutdown Protection
  • Create a Custom Design Using the LM46001 With the WEBENCH® Power Designer
Applications
  • Industrial Power Supplies
  • Telecommunications Systems
  • Sub-AM Band 12-V and 24-V Automotive
  • Commercial Vehicle Power Supplies
  • General Purpose Wide VIN Regulation
  • High Efficiency Point-Of-Load Regulation
