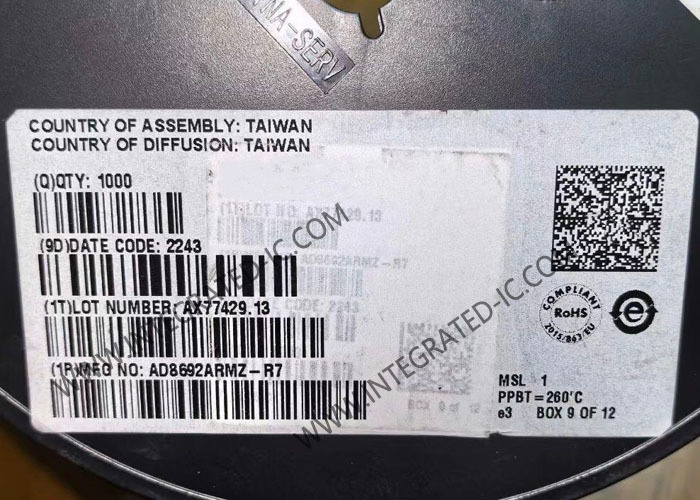

AD8692ARMZ Integrated Circuit Chip Low Cost Low Noise CMOS RRO Operational Amplifiers
Product Description
AD8692ARMZ is low cost, single, dual, and quad rail-to-rail output, single-supply amplifiers featuring low offset and input voltages, low current noise, and wide signal bandwidth. The combination of low offset, low noise, very low input bias currents, and high speed make these amplifiers useful in a wide variety of applications.
Specifications
| Number of Circuits |
2 |
| Output Type |
Rail-to-Rail |
| Slew Rate |
5V/µs |
| Gain Bandwidth Product |
10 MHz |
| Current - Input Bias |
1 pA |
| Voltage - Input Offset |
400 µV |
| Current - Supply |
950µA (x2 Channels) |
| Current - Output / Channel |
80 mA |
| Voltage - Supply Span (Min) |
2.7 V |
| Voltage - Supply Span (Max) |
6 V |
| Operating Temperature |
-40°C ~ 125°C |
Features
- Offset voltage: 400 µV typical
- Low offset voltage drift: 6 µV/°C maximum
- Very low input bias currents: 1 pA maximum
- Low noise: 8 nV/√Hz
- Low distortion: 0.0006%
- Wide bandwidth: 10 MHz
- Unity-gain stable
- Single-supply operation: 2.7 V to 6 V
- Qualified for automotive applications
Applications
- Photodiode amplification
- Battery-powered instrumentation
- Medical instruments
- Multipole filters
- Sensors
- Portable audio devices
