TPS2001CDGKR Integrated Circuit Chip 2A USB Power Switch 72mOhm Power Distribution

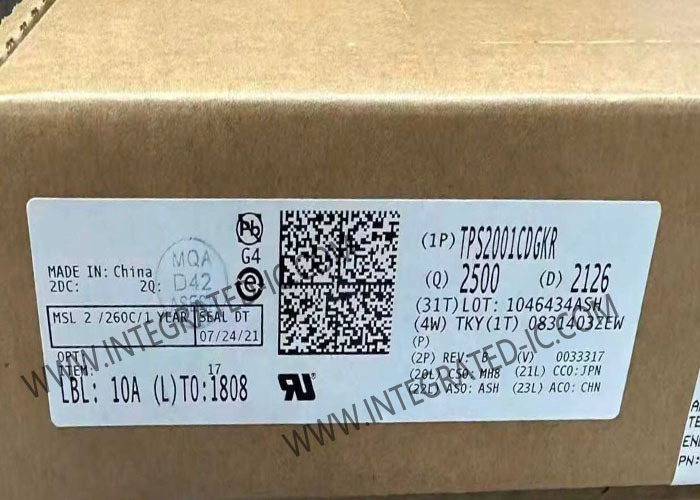

Large Image : TPS2001CDGKR Integrated Circuit Chip 2A USB Power Switch 72mOhm Power Distribution

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS2001CDGKR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	VSSOP-8
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

TPS2001CDGKR Integrated Circuit Chip 2A USB Power Switch 72mOhm Power Distribution

Description

Part Number:	TPS2001CDGKR	Number Of Outputs:	1 Output
Output Current:	2 A	On Resistance - Max:	72 MOhms
Operating Supply Voltage:	4.5 V To 5.5 V	Operating Temperature:	-40°C ~ 85°C (TA)
Highlight:	2A USB power switch IC , 72mOhm power distribution chip , TPS2001CDGKR integrated circuit

TPS2001CDGKR Integrated Circuit Chip 2A USB Power Switch 72mOhm Power Distribution

Product Description

TPS2001CDGKR is 2A loading, 4.5-5.5V, 72mΩ USB power switch, active-high, output discharge, reverse blocking.

TPS2001CDGKR Power-distribution switch family is intended for applications, such as USB, where heavy capacitive loads and short circuits are likely to be encountered. This family offers multiple devices with fixed current-limit thresholds for applications from 0.5 A to 2 A.

Specifications

Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required
Current - Output (Max)	2A
Rds On (Typ)	72mOhm
Input Type	Non-Inverting
Features	Output Discharge
Fault Protection	Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	8-VSSOP
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Features

Single Power Switch Family
Rated Currents of 0.5 A, 1 A, 1.5 A, 2 A
±20% Accurate, Fixed, Constant Current Limit
Fast Overcurrent Response: 2 µs
Deglitched Fault Reporting
Selected Parts With Output Discharge
Reverse Current Blocking
Built-In Soft Start
Ambient Temperature Range: -40°C to 85°C

Applications

USB Ports and Hubs, Laptops, and Desktops
High-Definition Digital TVs
Set-Top Boxes
Short-Circuit Protection
