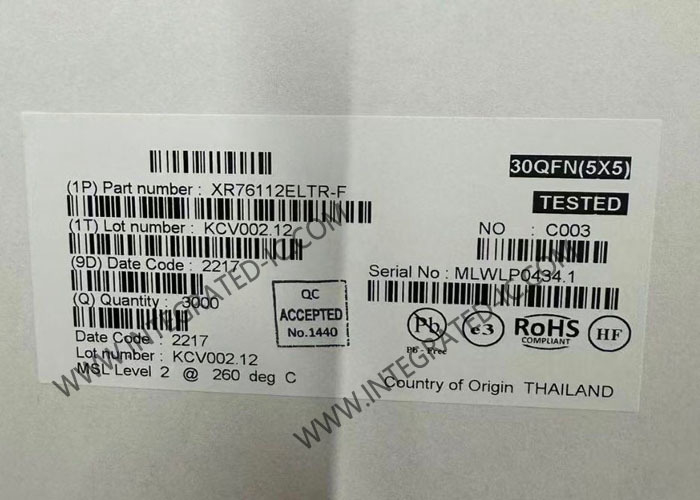

XR76112ELTR Integrated Circuit Chip 12A Synchronous Step Down COT Regulators

XR76112ELTR Integrated Circuit Chip 12A Synchronous Step Down COT Regulators
XR76112ELTR Integrated Circuit Chip 12A Synchronous Step Down COT Regulators

Large Image :  XR76112ELTR Integrated Circuit Chip 12A Synchronous Step Down COT Regulators

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: XR76112ELTR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-30
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

XR76112ELTR Integrated Circuit Chip 12A Synchronous Step Down COT Regulators

Description
Part Number: XR76112ELTR Output Voltage:: 600 MV To 18 V
Output Current:: 12 A Number Of Outputs:: 1 Output
Input Voltage - Min:: 3 V Input Voltage - Max:: 22 V
Highlight:

12A synchronous step down regulator

,

COT integrated circuit chip

,

XR76112ELTR step down converter

XR76112ELTR Integrated Circuit Chip 12A Synchronous Step Down COT Regulators
Product Description
XR76112ELTR is synchronous step-down regulators combining the controller, drivers, bootstrap diode and MOSFETs in a single package for Point-of-Load supplies. The XR76112ELTR has a load current rating of 12A. A wide 4.5V to 22V input voltage range allows for single supply operation from industry standard 5V, 12V and 19.6V rails.
Specifications
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 22V
Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 18V
Current - Output 12A
Frequency - Switching 200kHz ~ 800kHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 125°C (TJ)
Features
  • 8A and 12A capable step down regulators
    • 4.5V to 5.5V low VIN operation
    • 4.5V to 22V wide single input voltage
    • ≥0.6V adjustable output voltage
  • Controller, drivers, bootstrap diode and MOSFETs integrated in one package
  • Proprietary Constant On-Time control
    • No loop compensation required
    • Ceramic output capacitor stable operation
    • Programmable 200ns - 2µs on-time
    • Constant 200kHz - 800kHz frequency
    • Selectable CCM or CCM / DCM operation
  • Precision enable and Power-Good flag
  • Programmable soft-start
  • 5x5mm 30-pin QFN package
Applications
  • Distributed power architecture
  • Point-of-Load converters
  • Power supply modules
  • FPGA, DSP, and processor supplies
  • Base stations, switches / routers, and servers
