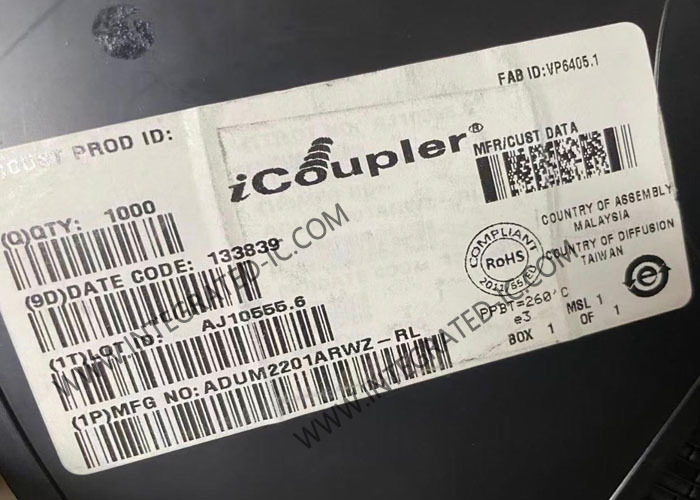

ADUM2201ARWZ Integrated Circuit Chip 5000Vrms Dual-Channel Digital Isolators SOIC16

ADUM2201ARWZ Integrated Circuit Chip 5000Vrms Dual-Channel Digital Isolators SOIC16
ADUM2201ARWZ Integrated Circuit Chip 5000Vrms Dual-Channel Digital Isolators SOIC16

Large Image :  ADUM2201ARWZ Integrated Circuit Chip 5000Vrms Dual-Channel Digital Isolators SOIC16

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADUM2201ARWZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-16
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

ADUM2201ARWZ Integrated Circuit Chip 5000Vrms Dual-Channel Digital Isolators SOIC16

Description
Part Number: ADUM2201ARWZ Number Of Channels: 2 Channel
Data Rate: 10 Mb/s Isolation Voltage: 5000 Vrms
Propagation Delay Time: 50 Ns Operating Supply Current: 800 UA
Highlight:

ADUM2201ARWZ digital isolator IC

,

dual-channel digital isolator SOIC16

,

5000Vrms isolated IC chip

ADUM2201ARWZ Integrated Circuit Chip 5000Vrms Dual-Channel Digital Isolators SOIC16
Product Description

ADUM2201ARWZ is 2-channel digital isolators. ADUM2201ARWZ isolators provide two independent isolation channels in two channel configurations with data rates up to 10 Mbps. This part operate with the supply voltage on either side ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems, as well as enabling voltage translation functionality across the isolation barrier.

Specification
Technology Magnetic Coupling
Type General Purpose
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 1/1
Channel Type Unidirectional
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 25kV/µs
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Max) 150ns, 150ns
Pulse Width Distortion (Max) 40ns
Rise / Fall Time (Typ) 10ns, 10ns
Voltage - Supply 3V ~ 5.5V
Operating Temperature -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
Features
  • High isolation voltage: 5000 V rms
  • Enhanced system-level ESD performance per IEC 61000-4-x
  • 3.3 V/5 V level translation
  • High temperature operation: 125°C
  • High data rate: dc to 10 Mbps (NRZ)
  • See Data Sheet for Additional Information
Applications
  • General-purpose, high voltage, multichannel isolation
  • Medical equipment
  • Power supplies
  • RS-232/RS-422/RS-485 transceiver isolation
  • Hybrid electric vehicles, battery monitors, and motor drives
