ACS722LLCTR-10AB-T Sensor IC 10A High-Accuracy Galvanically Isolated Current Sensor IC

ACS722LLCTR-10AB-T Sensor IC 10A High-Accuracy Galvanically Isolated Current Sensor IC
ACS722LLCTR-10AB-T Sensor IC 10A High-Accuracy Galvanically Isolated Current Sensor IC

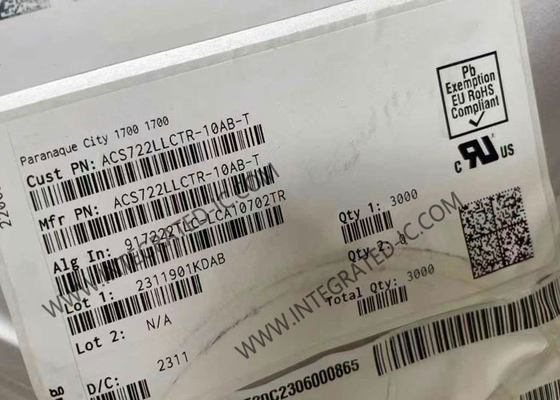

Large Image :  ACS722LLCTR-10AB-T Sensor IC 10A High-Accuracy Galvanically Isolated Current Sensor IC

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ACS722LLCTR-10AB-T
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-8
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

ACS722LLCTR-10AB-T Sensor IC 10A High-Accuracy Galvanically Isolated Current Sensor IC

Description
Part Number: ACS722LLCTR-10AB-T Current Rating: 10 A
Sensor Type: Current Sense Response Time: 22.5 Us
Frequency: DC ~ 80kHz Voltage - Supply: 3V ~ 3.6V
Highlight:

10A current sensor IC

,

galvanically isolated sensor IC

,

high-accuracy current sensor IC

ACS722LLCTR-10AB-T Sensor IC 10A High-Accuracy Galvanically Isolated Current Sensor IC
Product Description
ACS722LLCTR-10AB-T is a High-Accuracy, Galvanically Isolated Current Sensor IC with Pin-Selectable Bandwidth. It provides precise current measurements for AC or DC current, featuring pin-selectable bandwidth (80kHz or 20kHz), galvanic isolation, and a small footprint for space-constrained applications. Operates at 5V.
Specifications
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 10A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 132mV/A
Frequency DC ~ 80kHz
Linearity ±1%
Accuracy ±3%
Voltage - Supply 3V ~ 3.6V
Response Time 5µs
Current - Supply (Max) 12mA
Operating Temperature -40°C ~ 150°C
Polarization Bidirectional
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154")
Features
  • Patented integrated digital temperature compensation circuitry allows for near closed loop accuracy over temperature in an open loop sensor
  • Dielectric Strength Voltage: 2.4 kVrms
  • Basic Isolation Working Voltage: 420 Vpk or VDC / 297 Vrms
  • Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design techniques
  • Pin-selectable band width: 80 kHz for high bandwidth applications or 20 kHz for low noise performance
  • Primary conductor resistance for low power loss and high inrush current withstand capability (ACS722LLCTR-10AB-T: 0.65 mΩ)
  • 3 to 3.6 V, single supply operation
  • Output voltage proportional to AC or DC current
  • Factory-trimmed sensitivity and quiescent output voltage for improved accuracy
  • Chopper stabilization results in extremely stable quiescent output voltage
  • Nearly zero magnetic hysteresis
  • Ratiometric output from supply voltage
