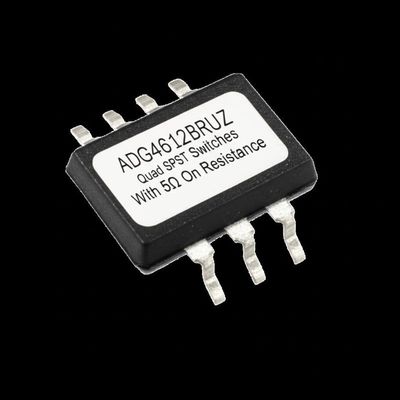

ADG4612BRUZ Integrated Circuit Chip with 5Ω On Resistance 4 Channel Quad SPST Switch for 3V to 12V Supply Voltage

ADG4612BRUZ Integrated Circuit Chip with 5Ω On Resistance 4 Channel Quad SPST Switch for 3V to 12V Supply Voltage

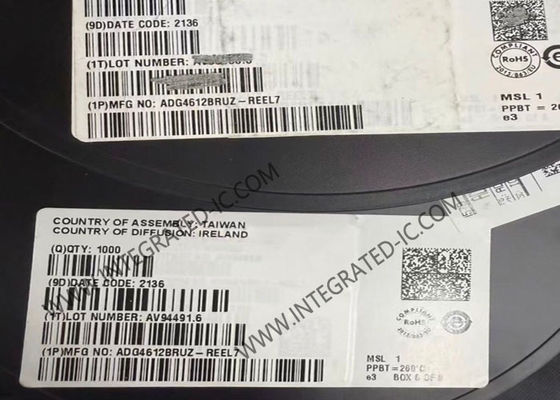

ADG4612BRUZ Integrated Circuit Chip with 5Ω On Resistance 4 Channel Quad SPST Switch for 3V to 12V Supply Voltage ADG4612BRUZ Integrated Circuit Chip with 5Ω On Resistance 4 Channel Quad SPST Switch for 3V to 12V Supply Voltage

Large Image :  ADG4612BRUZ Integrated Circuit Chip with 5Ω On Resistance 4 Channel Quad SPST Switch for 3V to 12V Supply Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADG4612BRUZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TSSOP-16
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

ADG4612BRUZ Integrated Circuit Chip with 5Ω On Resistance 4 Channel Quad SPST Switch for 3V to 12V Supply Voltage

Description
Part Number: ADG4612BRUZ Number Of Channels:: 4 Channel
Configuration:: 4 X SPST On Resistance - Max:: 6.1 Ohms
Supply Voltage - Min:: 3 V Supply Voltage - Max:: 12 V
Highlight:

5Ω On Resistance Integrated Circuit Chip

,

4 Channel IC Chip

,

3V to 12V Supply Voltage Quad SPST Switch

ADG4612BRUZ Integrated Circuit Chip Quad SPST Switches With 5Ω On Resistance
Product Description
The ADG4612BRUZ contains four independent single-pole/single-throw (SPST) switches. These switches activate with Logic 1 on the appropriate control input. Each switch conducts equally well in both directions when on and supports an input signal range that extends to the power supplies.
Specifications
Parameter Value
Switch Circuit SPST - NO
Multiplexer/Demultiplexer Circuit 1:1
Number of Circuits 4
On-State Resistance (Max) 5.1Ω
Channel-to-Channel Matching (ΔRon) 50mΩ
Voltage - Supply, Single (V+) 3V ~ 12V
Voltage - Supply, Dual (V±) ±3V ~ 5.5V
Switch Time (Ton, Toff) (Max) 73ns, 91ns
-3db Bandwidth 250MHz
Charge Injection 292pC
Channel Capacitance (CS(off), CD(off)) 11.5pF, 11.5pF
Current - Leakage (IS(off)) (Max) 10nA
Crosstalk -74dB @ 1MHz
Operating Temperature -40°C ~ 105°C (TA)
Key Features
  • Power Off Protection
  • Switch guaranteed OFF with no power supplies present
  • Inputs are high impedance with no power
  • Switch turns OFF if input > VDD + VT
  • Over-voltage protection up to +16V
  • PSS Robust
  • Negative Signal Capability passes signals down to -5.5V
  • 6.1Ω Max On Resistance
  • 1.4Ω On Resistance Flatness
  • ±3V to ±5.5V dual supply
  • 3V to 12V single supply
  • 3V logic-compatible inputs
  • Rail-to-rail operation
  • 16-lead TSSOP and 16 lead 3mm x 3mm LFCSP packages
Applications
  • Hot swap applications
  • Data acquisition systems
  • Battery-powered systems
  • Automatic test equipment
  • Communication systems
  • Relay Replacement
