KSZ8081RNDCA Ethernet IC Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver with 3.3V Power Supply

Large Image : KSZ8081RNDCA Ethernet IC Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver with 3.3V Power Supply

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	KSZ8081RNDCA

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-24
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

KSZ8081RNDCA Ethernet IC Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver with 3.3V Power Supply

Description

Part Number:	KSZ8081RNDCA	Standard::	10BASE-T, 100BASE-TX
Number Of Transceivers::	1 Transceiver	Data Rate::	10 Mb/s, 100 Mb/s
Supply Voltage - Min::	3.135 V	Supply Voltage - Max::	3.465 V
Highlight:	10BASE-T/100BASE-TX Ethernet IC , IEEE 802.3 Compliant Ethernet Transceiver , 3.3V Power Supply PHY Transceiver

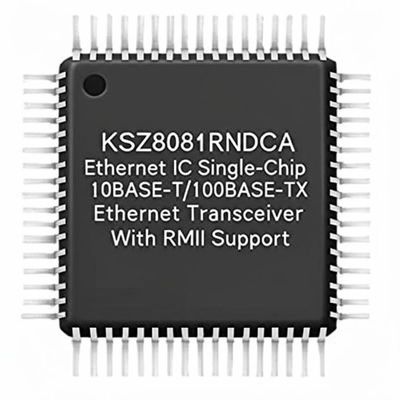

KSZ8081RNDCA Ethernet IC Single-Chip 10BASE-T/100BASE-TX Ethernet Transceiver With RMII Support

Product Description

The KSZ8081RNDCA is a single-supply 10BASE-T/100BASE-TX Ethernet physical-layer transceiver designed for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. This highly-integrated PHY solution reduces board cost and simplifies layout through on-chip termination resistors for differential pairs, integrated low-noise regulator for 1.2V core supply, and support for 1.8V/2.5V/3.3V digital I/O interfaces.

Specifications

Type	Transceiver
Protocol	RMII
Number of Drivers/Receivers	1/1
Duplex	Full
Voltage - Supply	1.8V, 2.5V, 3.3V
Operating Temperature	0°C ~ 70°C

Key Features

Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver
RMII v1.2 Interface Support with 50 MHz Reference Clock Output to MAC
RMII Back-to-Back Mode Support for 100 Mbps Copper Repeater
MDC/MDIO Management Interface for PHY Register Configuration
Programmable Interrupt Output
LED Outputs for Link and Activity Status Indication
On-Chip Termination Resistors for Differential Pairs
Baseline Wander Correction
HP Auto MDI/MDI-X for Cable Connection Detection
Auto-Negotiation for Speed (10/100 Mbps) and Duplex (Half/Full) Selection
Power-Down and Power-Saving Modes
LinkMD® TDR-Based Cable Diagnostics
Parametric NAND Tree Support for Fault Detection
HBM ESD Rating (6 kV)
Loopback Modes for Diagnostics
Single 3.3V Power Supply with VDD I/O Options (1.8V, 2.5V, 3.3V)
Built-In 1.2V Regulator for Core
24-pin 4 mm x 4 mm QFN Package

Applications

Game Consoles IP Phones IP Set-Top Boxes IP TVs LOM Printers
