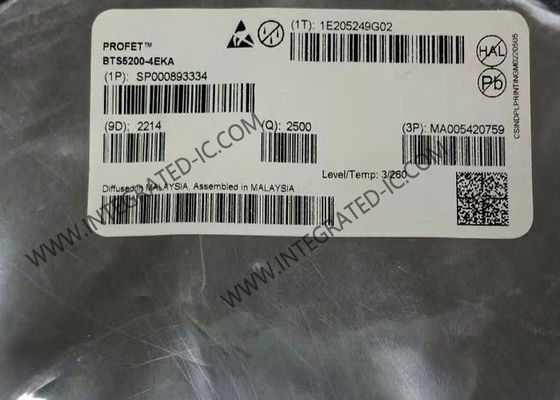

BTS5200-4EKA Integrated Circuit Chip Quad Channel Smart High-Side Switch PG-DSO-14

BTS5200-4EKA Integrated Circuit Chip Quad Channel Smart High-Side Switch PG-DSO-14
BTS5200-4EKA Integrated Circuit Chip Quad Channel Smart High-Side Switch PG-DSO-14

Large Image :  BTS5200-4EKA Integrated Circuit Chip Quad Channel Smart High-Side Switch PG-DSO-14

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BTS5200-4EKA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-DSO-14
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

BTS5200-4EKA Integrated Circuit Chip Quad Channel Smart High-Side Switch PG-DSO-14

Description
Part Number: BTS5200-4EKA Type: High Side
Output Current: 800 MA Current Limit: 5.6 A
On Resistance - Max: 400 MOhms Operating Supply Voltage: 5 V To 28 V

BTS5200-4EKA Integrated Circuit Chip Quad Channel Smart High-Side Switch PG-DSO-14



Product Description Of BTS5200-4EKA

BTS5200-4EKA is a 200 mΩ quad channel Smart High-Side Switch, embedded in a PG-DSO-14-48- EP, Exposed Pad package, with protective functions and diagnosis.
BTS5200-4EKA Power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to R5W, as well as LEDs in the harsh automotive environment.


Specification Of BTS5200-4EKA

Series
PROFET®
Switch Type
General Purpose
Number of Outputs
4
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
Parallel
Voltage - Load
5V ~ 28V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
800mA
Rds On (Typ)
200mOhm
Input Type
Non-Inverting
Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
PG-DSO-14-48-EP
Package / Case
14-SOIC (0.154", 3.90mm Width) Exposed Pad


Features Of BTS5200-4EKA

Quad channel device
Very low stand-by current
3.3 V and 5 V compatible logic inputs
Electrostatic discharge protection (ESD)
Optimized electromagnetic compatibility
Logic ground indep from load ground
Low power DMOS leakage I in OFF state


Applications Of BTS5200-4EKA

Automotive body control module (BCM)
Automotive battery management system (BMS) - high-voltage
EV traction inverter
On-board charging (OBC)
Domestic robots

Other Electronic Components In Stock

Part Number Package
IHW20N120R5 TO-247-3
IKQ120N60T TO-247-3
IKD15N60R TO-252-3
IHW30N120R5 TO-247-3
IHW40N120R5 TO-247-3
IKW40N65F5 TO-247-3
IKW40N65ES5 TO-247-3
IHW40N135R5 TO-247-3
IKW15N120H3 TO-247-3
IKW50N60H3 TO-247-3
IKY40N120CS6 TO-247-4
IKW25N120H3 TO-247-3
IKZA75N65SS5 TO-247-4
IKD10N60RC2 TO-252-3
IKD10N60RFATMA1 TO-252-3
IKD15N60RC2ATMA1 TO-252-3
IGB30N60H3ATMA1 TO-263-3
IGB50N65S5ATMA1 TO-263-3
IKB40N65ES5ATMA1 TO-263-3
IGP30N60H3XKSA1 TO-220-3
IGB50N60TATMA1 TO-263-3
IGW20N60H3FKSA1 TO-247-3
IHW30N65R6XKSA1 TO-247-3
IKW30N65WR5XKSA1 TO-247-3
IHW30N65R5XKSA1 TO-247-3
IKWH30N65WR5XKSA1 TO-247-3
IKW30N60H3FKSA1 TO-247-3
IHW50N65R6XKSA1 TO-247-3
IKWH40N65WR6XKSA1 TO-247-3
IKWH50N65WR6XKSA1 TO-247-3
